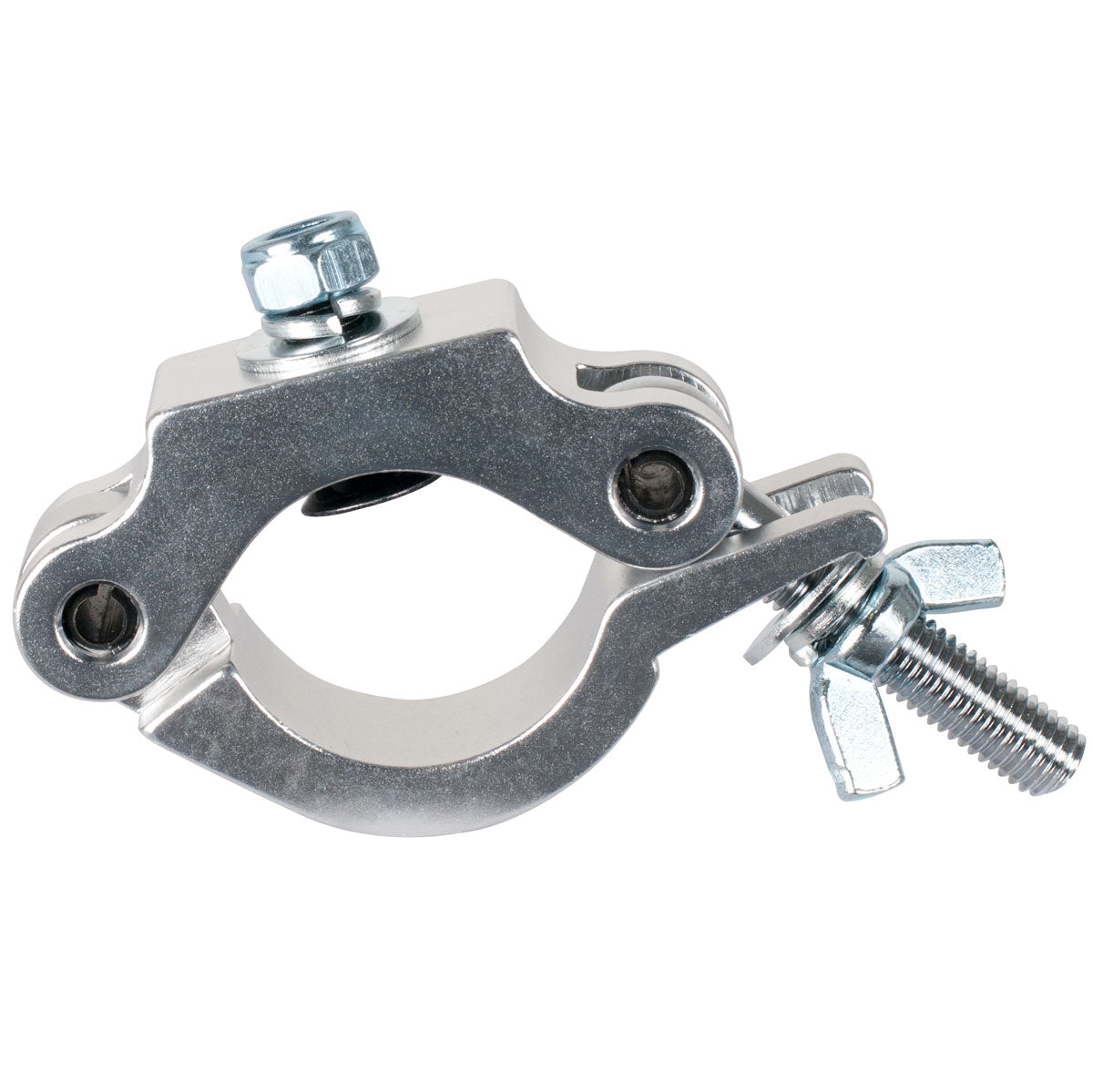

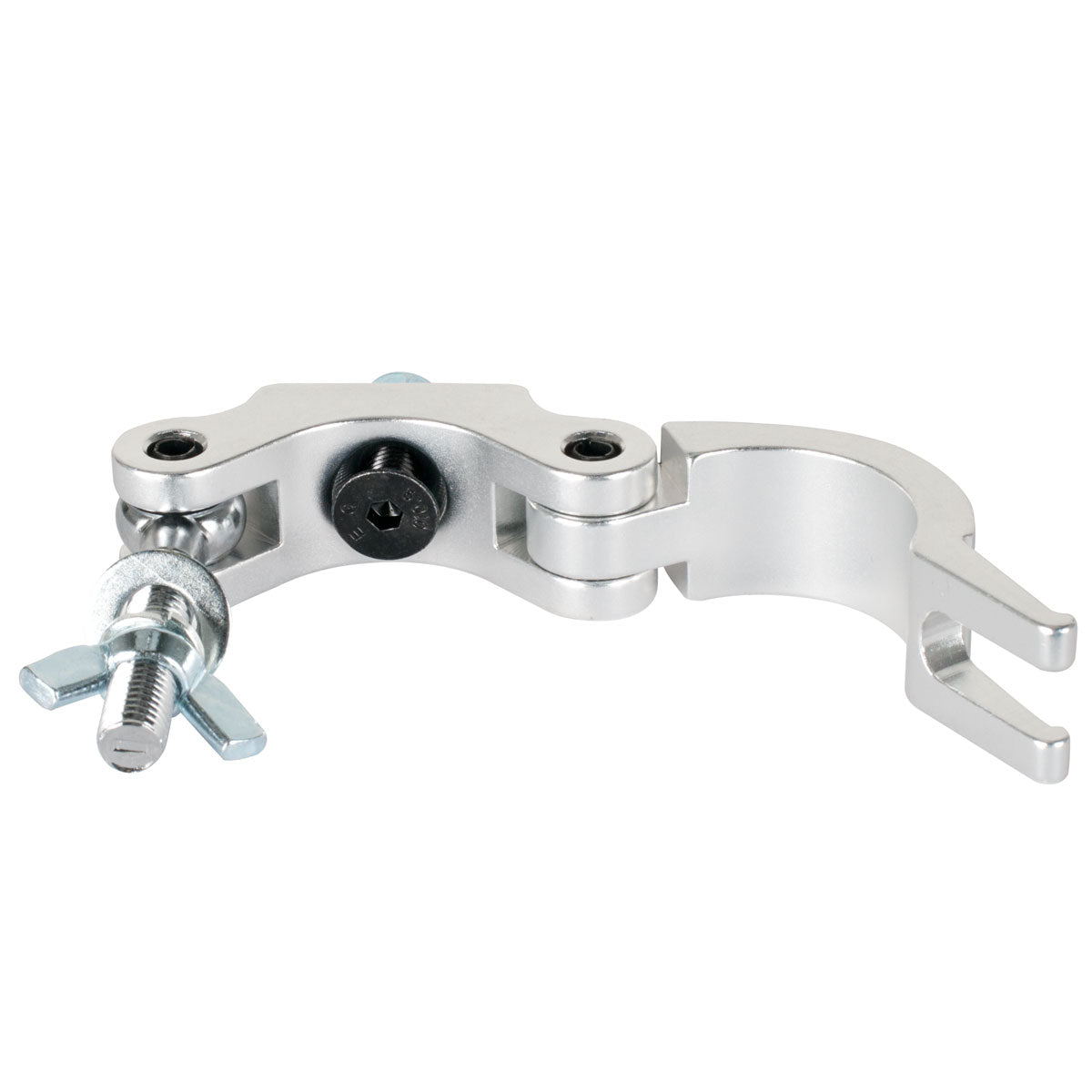

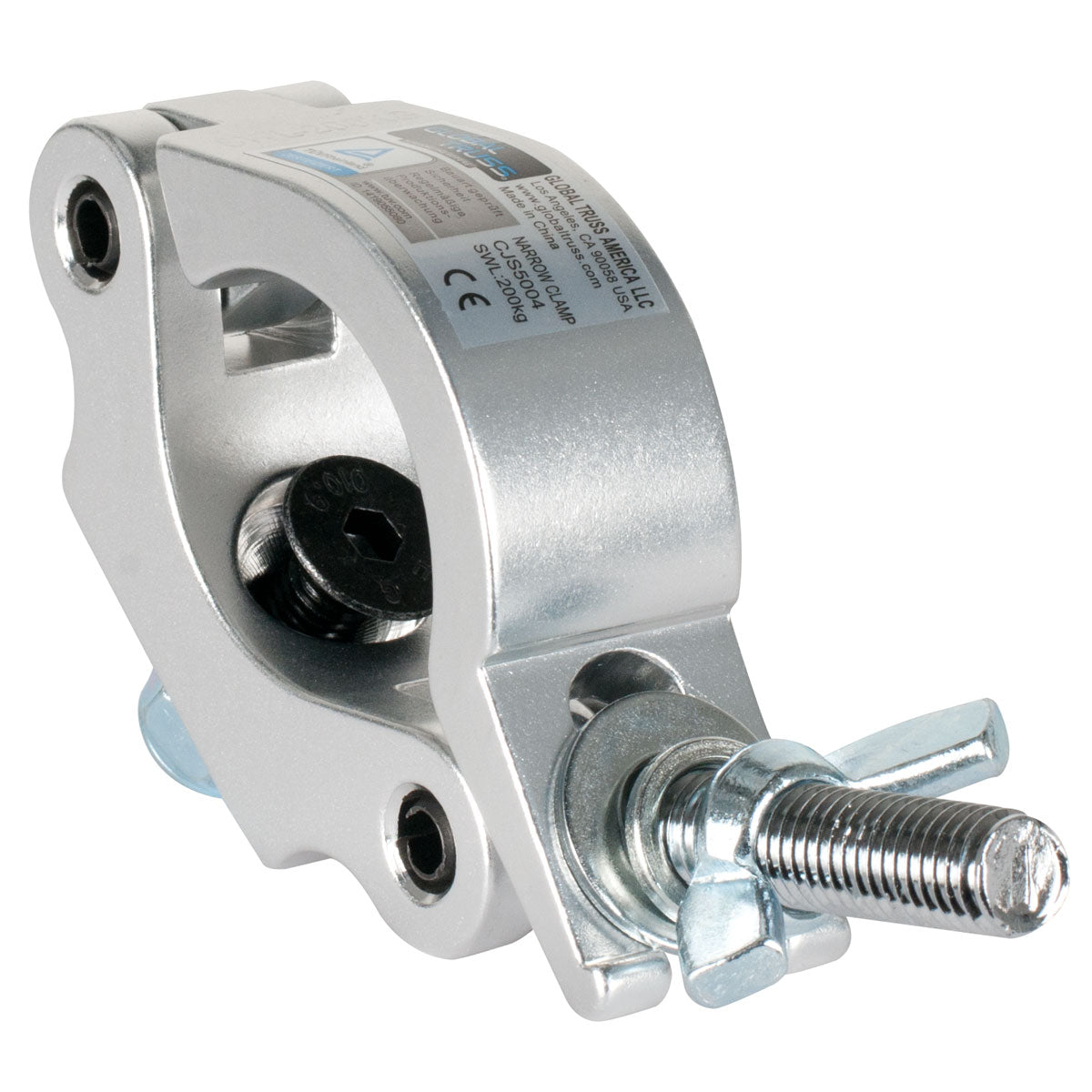

Narrow Clamp
The Narrow Clamp is a compact, medium-duty clamp designed for secure mounting on 50mm tubing. It fits 48–51mm diameters and is compatible with F31, F32, F33, F34, and DT44P truss systems. It supports up to 440 lbs (200 kg).
Narrow Clamp
Sale price$0.00
Narrow Clamp
The Narrow Clamp (SKU: CLM0521) is a medium-duty truss clamp designed for secure, space-saving mounting on 50mm tubing—ideal when you need strong grip without a bulky profile. Built to fit 48–51mm tube diameters, it’s compatible with F31, F32, F33, F34, and DT44P truss, making it a versatile choice for common rigging setups.
With a 30mm profile width and rugged hardware (M10 x 25mm bolt, 1.5 coarse thread pitch), this clamp delivers dependable holding power with a maximum load rating of 200 kg (440 lbs). Despite its strength, it stays lightweight at just 0.78 lbs, keeping your rig efficient without sacrificing durability.
Specifications
&• Medium Duty Clamp For 50mm Tubing
&• Compatible with F31-F32-F33-F34-F44P Truss
&•Minimum Tubing Diameter 48mm
&•Maximum Tubing Diameter 51mm
&•Max Load Capacity 200 kgs. - 440 lbs.
&•TUV Approved
&•Unit Weight 0.78 lbs.
