myDMX 2.0

myDMX 2.0 is now PC and Mac compatible. Also control myDMX 2.0 with your Smartphone! The software features a new design, which includes new icons, faders, colors and preset components allowing for a quicker and more pleasant workflow.

Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


Click here for a Dropbox link to the SSL2 profiles for myDMX 2.0:

myDMX 2.0 is a powerful and easy to use DMX lighting control app for PC and Mac.  Also control myDMX 2.0 with your Smartphone! Programming your light show has never been as easy or flexible to manage.

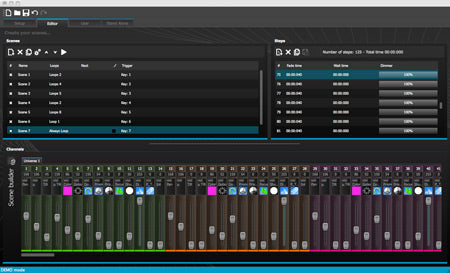

myDMX 2.0 has been re-built from the ground up.  The software features a new design, which includes new icons, faders, colors and preset components allowing for a quicker and more pleasant workflow.

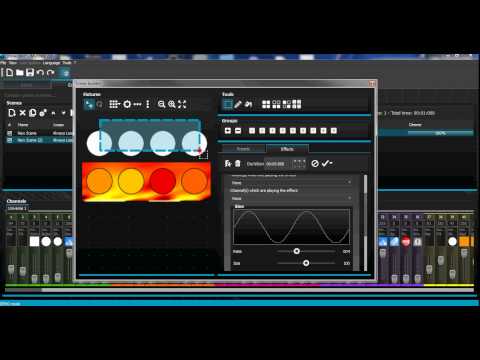

The Scene Builder allows you to do everything you used to do with the original Effects Generator and more. Arrange lighting fixtures, draw effects directly onto fixtures and set your effects in real-time.  The ‘Linear Fan’ effect allows you to create color gradients and position fans.

SSL2 fixture profiles allow more information to be stored about the personality of a lighting fixture.  This allows for quicker and easier programming.  For example, if you have an LED bar with several segments, you can control each segment individually whilst still having global control of master dimmer and macro channels.

MyDMX 2.0 3D BETA Software Terms of Service

WARNING: the software you are about to install is in BETA status and is not a final release by any means, you the end user agree that installing and using this software on your chosen Operating system (OS) do so at your own risk. American DJ and any of its employees or affiliates are not responsible for any corrupted or damaged files or computer issues. It is always advisable to back up any and all files in which are unique to you and your set up within the program. Software functions and features are subject to change at any time without prior written notification by ADJ Products, LLC or its affiliates.


This BETA software is supported in a limited capacity for the time being, we appreciate any and all feedback however we cannot and will not promise immediate fixes to any such reported software bugs or issues. Users who find bugs or software glitches can report them directly to We thank you all for helping us test this exciting new update to MyDMX 2.0

and we hope you have fun!

MAC USERS PLEASE NOTE: Before installing the Mac beta, please take the time to rename your current MyDMX2 folder to "Official" or similar naming convention as this beta install as of now does not install on its own as a secondary Mydmx2 Application. Please rename the folder before installing this beta release, if you do not, there is a chance your files will be overwritten, and you'll need to copy your files that you need, wipe both versions, and reinstall them separately and also rename the folder. If you have questions or need help doing this on your mac, please email us ASAP



myDMX 2.0 October 14, 2014 Update Additions:

  • Barrel drum rotation added to scene builder
  • Program now reads special characters such as ‘&’
  • Improved multi Pan and Tilt support
  • Users can now multi select steps in a scene and modify a channel parameter without it interfering with the rest of the channels
  • Vast optimizations and stability improvements for both Windows and Mac OS
  • Not compatible with ARM based Windows tablets (only Intel)

Multi platform software/hardware system (Windows and OSX Mac compatible)
  • Easy-to-use DMX software
  • 512 DMX channels
  • Extensive fixture profile library
  • SSL2 Profile editor & support
  • 3D Visualizer
  • MIDI triggering
  • New graphical interface design
  • New drag and drop effects generator
  • Works with simple scenes/steps
Minimum System Requirements:
  • Windows / Mac laptop or desktop computer with USB port
  • Windows ME, XP, Vista & Win 7 compatible (64-Bit compatible) and Mac OSX 10.7 and higher
  • 800x600 screen resolution
  • 256MB Memory
  • Clock frequency: 800 MHz
  • 32MB RAM video card supporting Microsoft DirectX 9.0
  • Open GL 3.1 or higher for 3D visualizer
  • Video graphics card; open GL 3.1 or higher for 3D visualizer

Best Performance System Requirements:
  • Laptop or desktop computer with USB port
  • Compatible with Windows Vista, Windows 7, Windows XP & MAC OSX (10.7 & higher). The July 5, 2012 software is now compatible with Windows XP (downloadable from this page)
  • 1280x1024 screen resolution
  • 512MB Memory
  • Clock frequency: 1.5 GHz
  • 128MB RAM video card supporting Microsoft DirectX 9.0
  • Open GL 3.1 or higher for 3D visualizer
  • Video graphics card; open GL 3.1 or higher for 3D visualizer
Specifications subject to change without notice. Microsoft, Windows and their logos are registered trademarks of Microsoft Corporation. Apple, MAC and Macintosh are registered trademarks of Apple Computer, Inc.





The following downloads are available for this product:

Title Description
myDMX 2.0 User Manual Download
myDMX 2.0 December 23, 2014 Update MAC OSX (243 MB) Download
myDMX 2.0 December 23, 2014 Update Windows (81 MB) Download
myDMX 2.0 July 01, 2015 Update MAC OSX (361.5 MB) Download
myDMX 2.0 July 01, 2015 Update WINDOWS (78.2 MB) Download
July 1, 2015 Release Notes Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

i want to know if your sofware for the my dmx2.0 will have a 3D view,add i have a ligth of big dipper like lp005 ,lp004 , and lm70 but the specifications does not appear on the software library

The 3D Visualizer is in Beta Test Mode:

Try this link. As for the Fixture info you will ned to contact our service Dept to generate a profile for you. Contact

I recently purchased myDMX 2.0 and even after loading in the December 23rd update, the Inno Pocket Roll is not a fixture listed in the selection list. How would I load in a fixture similar enough to control it correctly?

Please contact

can u please put RGB light in the program of my dmx 2.0 beacuse i have rgb light specialy lazer light and par

Please contact Service at american DJ in order to have a library entry profile made. E mail

Hello, I just purchase a copy of the mydmx 2.0. I was able to download the software but i'm unable to run the application. Everytime i try to run the application I got an error message to check the Mac OSX Version and reinstall the program. My apple computer has the required Mac OS version that is required (MAC OS 10.6), therefore i dont understand the reason of the issue. Can you please help me with this issue. Regards, Esteban Roman

Esteban, please contact

Will my dongle that I have from purchase of the previous mydmx work with mudminnow 2.0?

They are incompatible systems. MY dmx 2.o will not work with MY dmx 1.0.

Hi, I have a couple of request for profiles. I'm using My DMX 2.0. Chauvet Motion Orb Chauvet Intimidator Wave IRC

I am sending this to Service,

The product page for myDMX .20 on the adj site speaks of control via smartphone. Which Platform and where is the app available?

The App is avaliable at the Apple App Store.

Hi we bought MYDMX to use for our theatre lighting at school. We have a relatively small set up and it works great. We have some generic lights that we want to add into our program. They are 86 LED RGB fixtures (super cheap) anyway. We can add them under the Generic folder using RGBA, RGBY, RGBD, RGBW any of the 4 channel options seem to work but the sliders don't match up (dimmer is on the last channel slider of the 4 instead of on the first). Is there a way to edit this? Or maybe another option that would work so that the colors and dimmer sliders would match? Thanks!

I am sorry but if the fixture manufacturer has not used standard color placing, there is no way to reprogram MY DMX2.0 to work with that. MYD 2.o talks to the software that is in the fixture and can't superimpose it's own. Sorry but we can't change that.

I have a problem loading a .dlm file made in Mydmx 1.0 into Mydmx 2.0 First I copied all the ssl files (of all the fixtures I use) from the ScanLibrary 1.0 to the ScanLibrary 2.0, and all at the same location as they were in 1.0 Opening the .dlm file gives a popup with warning and the program crashes After that I renamend all the .ssl files in .ssl2 files and tryed again...same result. Making new programs is no problem, but I want to open all the shows I made in Mydmx1.0 and this must be possible...but how? I hope you can help me! Greetings, Auke from Holland

Please contact or call 0031 45 546 85 00- ADJ EU in the NETHERLANDS.

What is the name of the App in the Apple App Store for controlling myDMX 2.0. Can't find an app with that name.

It is Easy Remote.
