Mega QA Go

UPC#: 819730019615
Advantage Points: 130
Redemption Points: 2600
SKU
MEG593

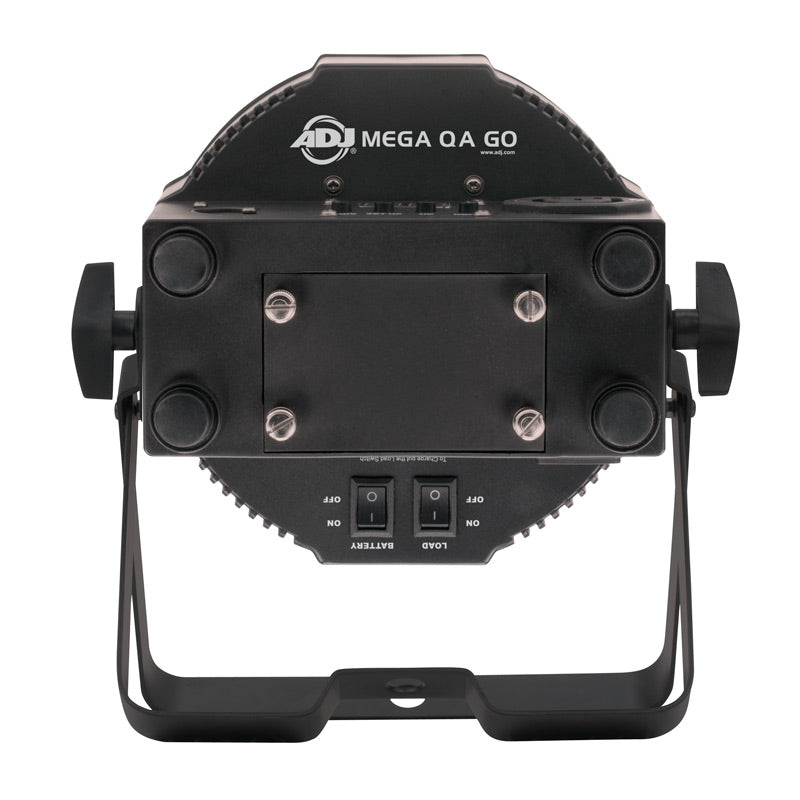

The ADJ Mega QA Go is a battery powered LED Par with five 4W (Quad 4-IN-1) RGBA LEDs, ADJ's patented "sit-flat" design, a scissor yoke, and a 40-degree beam angle.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Features:

• Stand Alone or Primary/Secondary Configuration

• Beam Angle: 40 degrees

• 64 built-in Color Macros

• DMX-512 protocol
• With Wired Digital Communication Network

• Color strobe effect

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Compatible with UC IR wireless remote (sold separately) & Airstream IR app

• Linkable via 3-pin XLR cable

• Electronic Dimming: 0-100%

• Flicker Free
• Refresh Rate: 1KHz

• Includes a scissor yoke to hang on truss, mount on a wall or set on the ground
• Includes IEC power cable to charge fixture or use as AC power input



Specifications:

• Ultra bright slim flat black Par with 5 x 4-Watt, 4-IN-1 Quad RGBA LEDs (rated at 50,000 hrs.)

• Smooth color mixing (fast or slow color change operation)

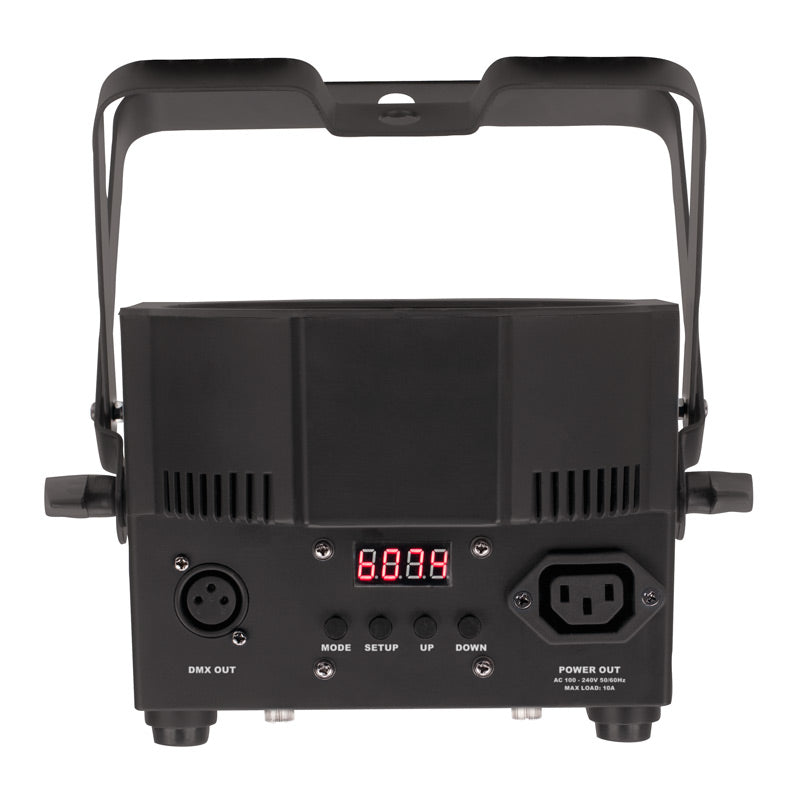

• Unique “sit-flat” design: Power & DMX Ins/Outs intelligently designed so the unit can be set flat on the ground or set inside truss

• Rechargeable Lithium battery built-in to fixture

• 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
• 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBA Dimmer Mode, Static Color Mode (64 Colors), and DMX Controlled

• Digital DMX Display with 4-button menu for easy navigation

• Power Draw: 28W Max

• IEC AC input and out put on the side of the fixture to daisy chain the power cords (link up to 20 fixtures)

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Dimensions (LxWxH): 5.5”x 9” x 10”/ 253 x 227 x 140mm

• Weight: 4 lbs./ 1.9 kg.

Battery Specifications:
• Battery Life With Full Charge: 16 Hours (Single Color); 16 Hours (Sound Active); 16 Hours (Fade Mode); 8 Hours (Energy Saving Mode); 7 Hours (Full On)
• Battery Charge Time: 8 Hours (with Load Switch Off)
Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
Battery Type: Fixed Lithium Battery
Battery Energy: 73.26WH (Watt Hours)
Battery Weight: 1lbs. / 0.42kg
Battery Voltage: 11.1V
Battery Capacity: 6.6AH
Total Lithium Ion Cells: 9pcs
Battery Wrap Material: PVC Sleeving + Highland Barley Paper






Videos

Downloads

The following downloads are available for this product:

Title Description
Mega QA GO DMX Traits DMX Traits Download
Mega QA GO Photometric Test Report Photometric Test Report Download
Mega QA GO CAD Drawing CAD Drawing Download
Mega QA Go User Manual User Manual Download

The ADJ Mega QA Go is a compact, low profile battery powered LED Par designed for uplighting and stage lighting, and will bring color and excitement to any party. This fixture features an unique “sit-flat” design so that it may sit directly on the ground or inside truss without the scissor yoke because the power & DMX ins and outs are mounted on the side of the fixture, not on the rear.



The Mega QA Go features 5x 4-Watt, 4-IN-1 RGBA  LEDs which offers smooth Color Mixing, has a 40-degree beam angle, 5 operational modes (including DMX, Sound Active Mode, RGBA Dimmer Mode, Auto Run Mode, & Static Color Mode), and has 8 DMX Channel modes for a variety of programming options. Users can also use the Airstream IR App or ADJ UC IR wireless remote, which is sold separately, to control the Mega QA Go.

Learn more about the Mega QA Go in this product spotlight article: http://tinyurl.com/z73ds2x
