Mega Panel LED

The Mega Panel LED from American DJ offers a great assortment of options that give you many choices when looking for a wash of colors to spread all over your dance floor or landscape.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

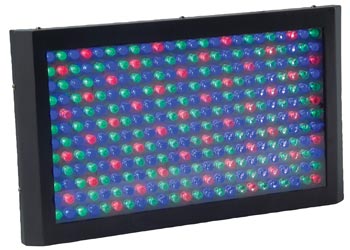

When you are looking for that perfect mix of color and flowing light, look no further than the Mega Panel LED from American DJ. Great for stages and architectural designs, this unit will run all night due to its no duty cycle. With the long life (rated at 100,000 hrs) and the promise that the colors will not fade over time, you can expect to use your Mega Panel LED for years to come.

Create a rainbow of colors with the RGB Color Mixing option included with the Mega Panel LED. The ultra bright, indoor LED color panel has 288 LEDs, allowing for the most fluid light show your audience will ever see. The Mega Panel LED is great as an architectural wall wash or used for performance stages where a lot of heat of heat can be put onto performers from the traditional stage lighting.

The Selectable 5, 8 ,14, or 26 DMX channels for different applications will make sure that you can switch between your programmed setups with ease. The 4-button LED display on the back of the device will really help with programming as well. Connect multiple Mega Panel LEDs together using a 3-pin XLR cable. With the electronic dimming and 40 degree beam angle, you can expect a unique light show. So for your next wall wash or stage show, make sure you have a Mega Panel LED indoor color panel from American DJ.



  •  Ultra bright, indoor LED Color Panel with 288 10mm LEDs (48 Red, 120 Green, & 120 Blue LEDs
  •  5 operational modes, Program mode, Auto mode, Sound mode, Master/Slave mode & DMX mode
  •  Very smooth field with rich palettes of color created by mixing the Red, Green and Blue LEDs
  •  Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  •  Smooth RGB color mixing (fast or slow color change operation)
  •  Color strobe effect
  •  DMX-512 Protocol
  •  Selectable 5, 8, 14 or 26 DMX Channels for different applications
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 40-degree
  •  Linkable via 3-pin XLR cable

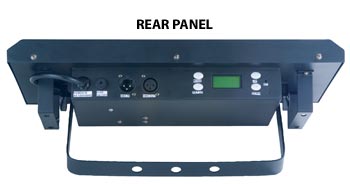

  •  4-button LED display on rear panel
  •  Includes ceiling and truss mounting
  •  Power Draw: 36W
  •  Dimensions (LxWxH): 17” x 10” x 7” / 428x248x178mm
  •  Weight: 8 lbs. / 3.2 kgs.





The following downloads are available for this product:

Title Description
Mega Panel LED Photometrics Download
Mega Panel LED_Rev March 2010 Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Mega Panel LED
