Mega Bar LED RC

SKU: MEG550
Advantage Points: 400

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • Ultra bright, indoor LED Color Bar with 251 10mm LEDs (48 Red, 108 Green, & 95 Blue LEDs
  • Includes wireless infrared remote control up to 30 ft./10M (Model: ADJ LED RC)
  • 6 DMX Channel modes: 2, 3, 4, 6, 7 or 11 channel modes
  • 5 operational modes, Program mode, Auto mode, Sound mode, Master/Slave mode & DMX mode

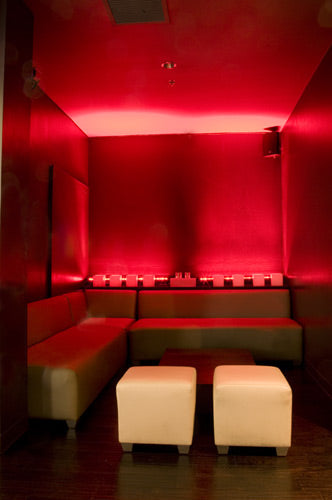

  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • Smooth RGB color mixing (fast or slow color change operation)
  • Built-in Color Macros
  • Color strobe effect
  • DMX-512 Protocol
  • Electronic Dimming: 0 - 100%
  • Beam angle: 40-degree
  • Linkable via 3-pin XLR cable

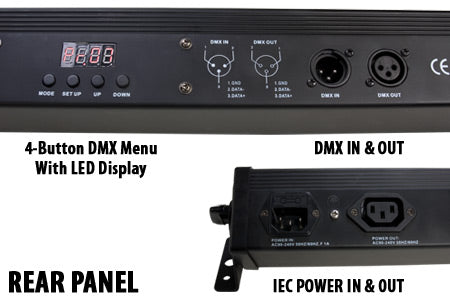

  • 4-button LED display on rear panel
  • IEC AC outlet on rear to daisy chain power
  • Includes mounting brackets
  • Long life LED (Rated at 100,000 hrs.)
  • Low power consumption
  • Very low heat output
  • Run all night – No duty cycle
  • Power Draw: 30W max
  • Multi-voltage: 90-240V, 50/60Hz
  • Dimensions (LxWxH): 40.5” x 2.75” x 3.5” / 1025x65x88 mm
  • Weight: 8 lbs. / 2.8 kgs.

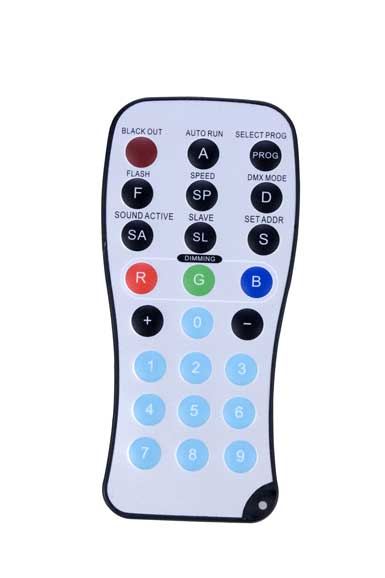

  • ETL approved (see user manual for more info) ADJ LED RC Infrared Remote Control F
  • Black Out: Turns fixture On/Off
  • Auto Run: Automatically run through built-in programs
  • Program Selection: Access units built-in programs
  • Flash: Strobe effect
  • Speed: Control speed of Auto Run
  • DMX Mode Select
  • Sound Active: Activates sound active mode
  • Slave: Designates the fixture as a “slave” fixture in the Master/Slave configuration
  • Set Address: Set DMX Address on a fixture
  • RGB Buttons: Adjust RGB colors with the “+” and “-“ buttons
  • + and – Buttons: Adjust flash rate, speed of the Auto Run and Program Selection

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Bar LED RC User Manual Download
Mega Bar LED RC Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Mega Bar LED RC
