Mega Bar LED

(Discontinued)
Advantage Points: 450

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

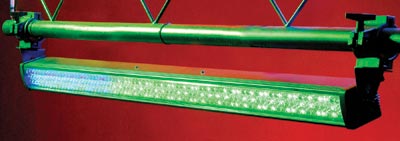

  • Ultra bright, indoor LED Color Bar with 252 10mm LEDs (48 Red, 108 Green, & 96 Blue LEDs

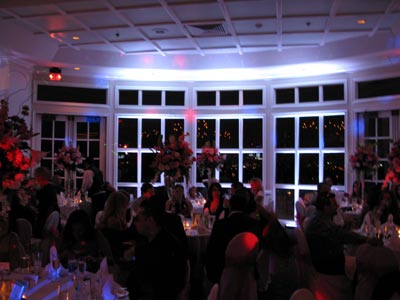

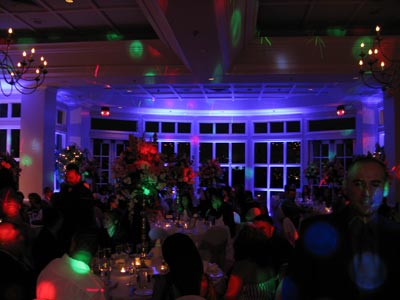

  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • 5 operational modes, Program mode, Auto mode, Sound mode, Master/Slave mode & DMX mode

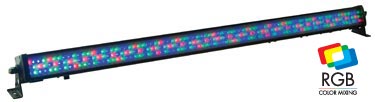

  • Very smooth field with rich palettes of color created by mixing the Red, Green and Blue LEDs
  • Smooth RGB color mixing (fast or slow color change operation)
  • Color strobe effect
  • DMX-512 Protocol
  • Electronic Dimming: 0 - 100%
  • Beam angle: 40-degrees
  • Linkable via 3-pin XLR cable

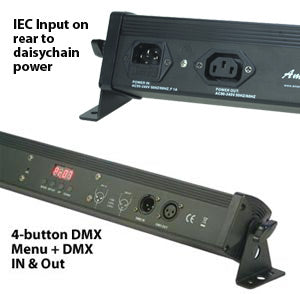

  • 4-button LED display on rear panel
  • IEC outlet on rear to daisy chain power (IEC extension cords sold separately)
  • Includes mounting brackets
  • Power Draw: 30W
  • Dimensions (LxWxH): 40.5” x 2.75” x 3.5” / 1025x65x88 mm
  • Weight: 7 lbs. / 2.8 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Bar LED User Manual Download
Mega Bar LED Phototmetrics Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

is the Mega Bar LED okay to use when videotaping? Will it be flicker free even when dimmed?

The Mega Bar Led is not Flicker free but the Mega Bar RGBA is flicker free.
