LED DUMMY

SKU: LED579 | UPC: 640282001656

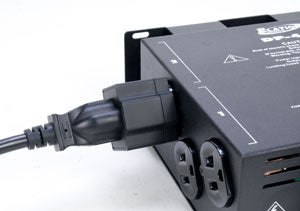

American DJ's LED DUMMY is a high quality load device for use with triac control circuits and LED lighting gear. Connect the LED DUMMY inline to the power output of dimmer packs. The U.S. version of the DMX Dummy features a standard Edison Socket design for power transmission.

Advantage Points: 20

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

"Lights out"" is supposed to mean just that ""Lights out"".  Well, as anyone who’s ever worked with LED fixtures & dimmer packs knows, they can have an afterglow that keeps emitting small amounts of light even after the dimmer has been turned off.

Finally, “Off” can really mean ""Off"" thanks to the new LED Dummy. The LED Dummy is a simple, but effective load device that makes afterglows go away! The LED Dummy plugs into a dimmer pack and completely absorbs the load so the LEDs aren’t constanly fed the small traces of power that keep the faint glow of light alive.

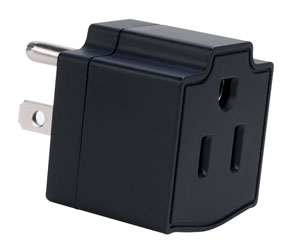

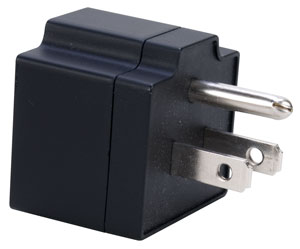

Designed for triac control circuits, the LED Dummy uses a standard Edison socket and plug. The device consumes very little power and measures only 50.5 by 36 by 38 mm.





Specifications

Specifications

  • Operating Voltage: AC90V-260V
  • Resistance: 2000 ohm impedence, 5% tolerance
  • Power Consumption: 0.5W Max
  • Connection: Edison socket and plug
  • Housing: PC + UV resistant
  • IP Rating: IP 20
  • Operating Temperature: -10°C to +50°C
  • Storage Temperature: -20°C to +70°C
  • Dimensions(LxWxH): 50.5 x 36 x 38mm
  • Weight: 27.5g
