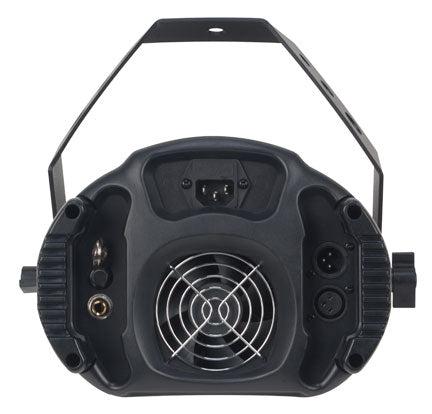

Inno Scan LED

(Discontinued)
SKU: INN862
The Inno Scan LED from American DJ offers a 50-Watt DMX-512 scanner. It is the device you are looking for when it comes to professional lighting effects and is perfect for the mobile DJ. The features offered with this product really show that you are getting a lot of bang for your buck.
Advantage Points: 600

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Have you been looking for an intelligent scanner that has loads of professional features and is high quality, but at an affordable price? Well the Inno Scan LED from American DJ gives you the light show you would expect from a top end scanner and adds on a slew of great features. The Inno Scan LED offers replaceable gobos so you can put the design of you choice into this scanner and blast it across the dance floor. This unit comes with 6 rotating gobos, plus a spot.

The 2 DMX channels and 4-button LED menu display will really let you customize the way your scanner operates. The Inno Scan LED offers a gobo shake effect and LED strobe & pulse effect that is sure to entertain. Get your setup running out of the box with the built-in lighting programs and sound active mode or customize it with the 2 DMX channels that are available.

There are a handful of features that will allow for a customized movement of lights and designs. The 9 degree beam angle and X/Y mirror movement will really allow for your lights to run in parallel at the perfect angle for the dance floor. With the hanging bracket and safety hook that are included, installing the Inno Scan LED into your lighting setup will be a breeze. The Inno Scan LED is compatible with the American DJ UC3 series controllers (sold separately).

Specifications

Specifications

  •  50-Watt LED DMX-512 Scanner
  •  8 colors + white
  •  6 rotating gobos + spot
  •  Separate Color & Gobo Wheels
  •  Replaceable Gobos (Gobo size: 23.8mm / Viewable size: 19mm)
  •  2 DMX Channel modes (8 or 11 Ch.)
  •  4-Button menu system LED Display making it easy to navigate
  •  3 Operational modes: DMX-512, Master/Slave & Sound Active
  •  Built-in lighting programs
  •  Pan/Tilt Inversion Mode: When using 4 scanners in master/slave scanner 1 & 3 sync opposite scanner 2 & 4
  •  Sound Active
  •  Manual focusing lens
  •  Gobo Shake effect
  •  LED Strobe and Pulse effect
  •  9-degree beam angle
  •  X/Y mirror movement
  •  Stepper motors with micro stepping
  •  DMX-512 protocol
  •  Fan cooled
  •  Hanging Bracket + safety hook included
  •  Power consumption: 103W
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Multi-voltage Operation: AC 100-240V 50/60Hz - IEC socket
  •  LED life rating: 30,000 hours
  •  Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
  •  Dimensions (LxWxH): 11" x 8.25" x 22" / 274x208x555mm
  •  Weight: 14 lbs. / 6.3 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Scan LED User Manual Download
Inno Scan LED Cut Sheet Download
