Inno Pocket Beam Q4

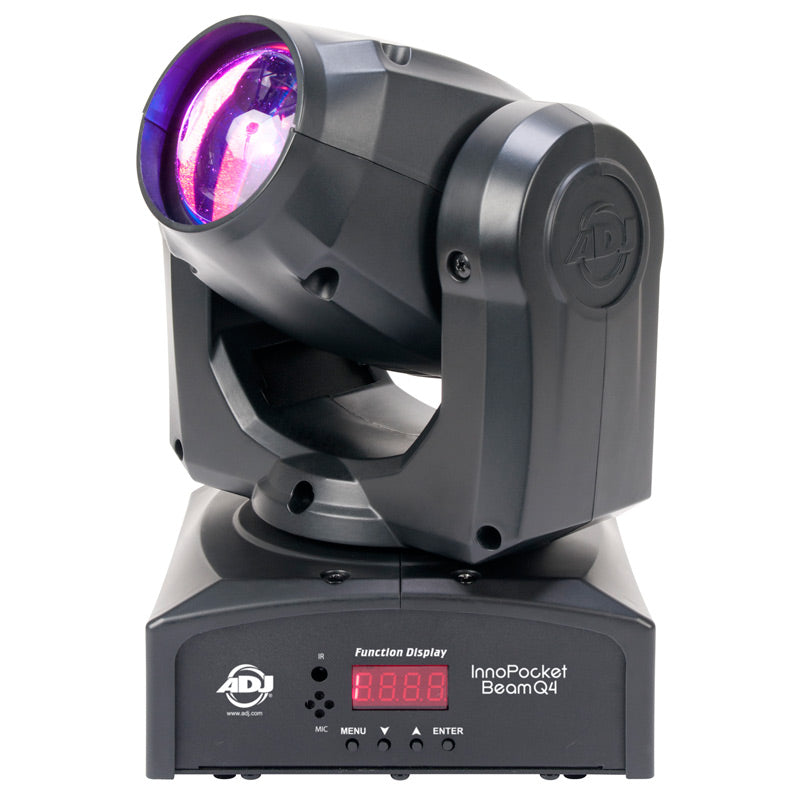

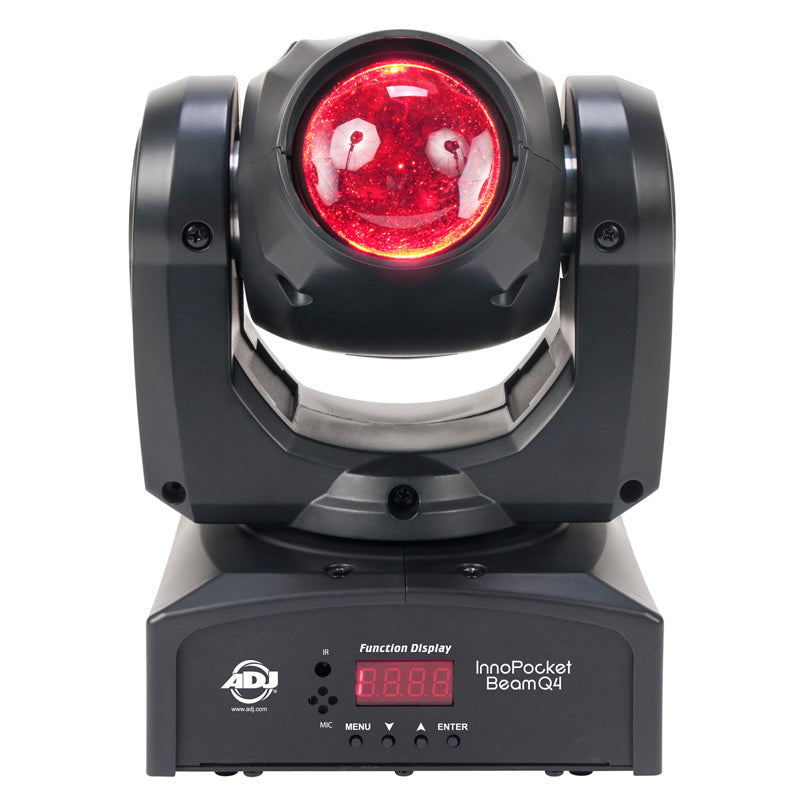

The Inno Pocket Beam Q4 is a mini Moving Head beam effect with a bright 15-Watt Quad LED source. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers or any mobile production.Featuring a RGBW quad color LED, the Inno Pocket Beam Q4 will give pure lighting excitement with its 4built-in shows, fast moving beams and color changes. For added excitement, it has a pan and tilt inversion mode that makes one head do the opposite of another when linked together.Other control methods include: Sound active with 4 built-in shows, or use a DMX controller to create your own light shows.
Specifications
• 15W Quad Color (RGBW) mini Moving Head Beam effect
•RGBW Color Mixing
•3 Operational modes: DMX, Sound Active amp; Internal Show control modes
•3 DMX channel modes:10/11/13 Channel modes
• 4 Built-in shows
• Beam Angle: 4-degrees
• 540deg; pan / 230deg; tilt (16-bit)
•Pan /Tilt Inversion mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural amp; Theatre)
•Shutter: Pulse effect; random strobe slow to fast
•Dimming: 0% - 100%
• Fan Cooled
• Omega bracket included

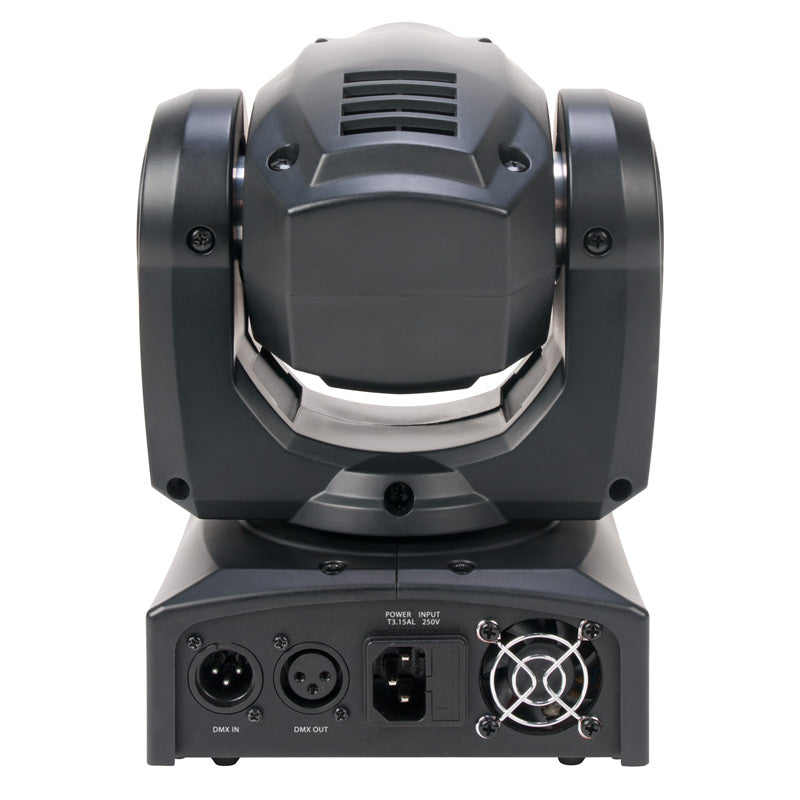

• Linkable: DMX via 3-pin XLR cable
• 4-button function display
• Optional UC IR wireless remote control (not included): Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off
•Compatible with the ADJ Airstream IR App
• PWM (Pulse Width Modulation): 1.1K
• Strobe Rate: 0.7-13HZ
•Power consumption: 46W
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Cable Length: 1.5M (IEC)
• LED Source: 15W RGBW Quad LED source (Rated at approximately 50,000 hrs)
• Light Output: 12910 LUX @2M; 4071 LUX @4M (4-degree beam)
•Dimensions (LxWxH): 6.25" x 5.75" x 10.5" / 159 x 147 x 265mm
• Weight: 7 lbs. / 3 kgs.
Downloads
Cut sheet
Photometrics
User manual
