Ikon Profile
• Bright white 32W LED indoor Gobo Projector
• High quality optics - Clear powerful output
• 3 DMX Channels
• RDM (Remote Device Management)
• 5 Dimmer Curves

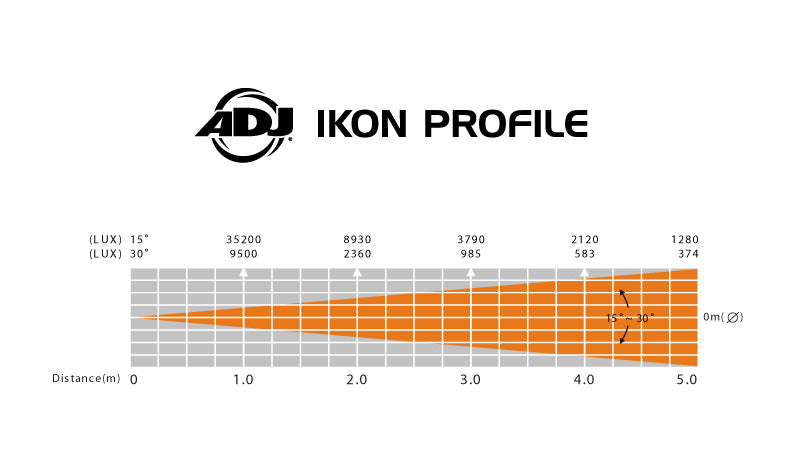

• Beam Angle: 15-30 degrees

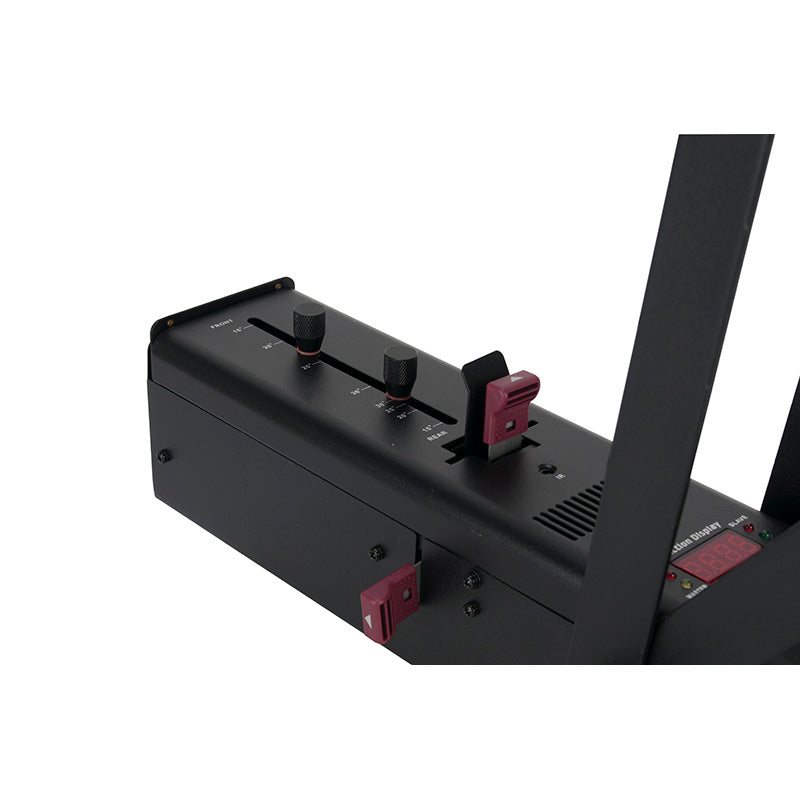

• Adjustable Beam Angle and Focus
• Manual Framing Shutters
• Includes Textured Glass Gobo

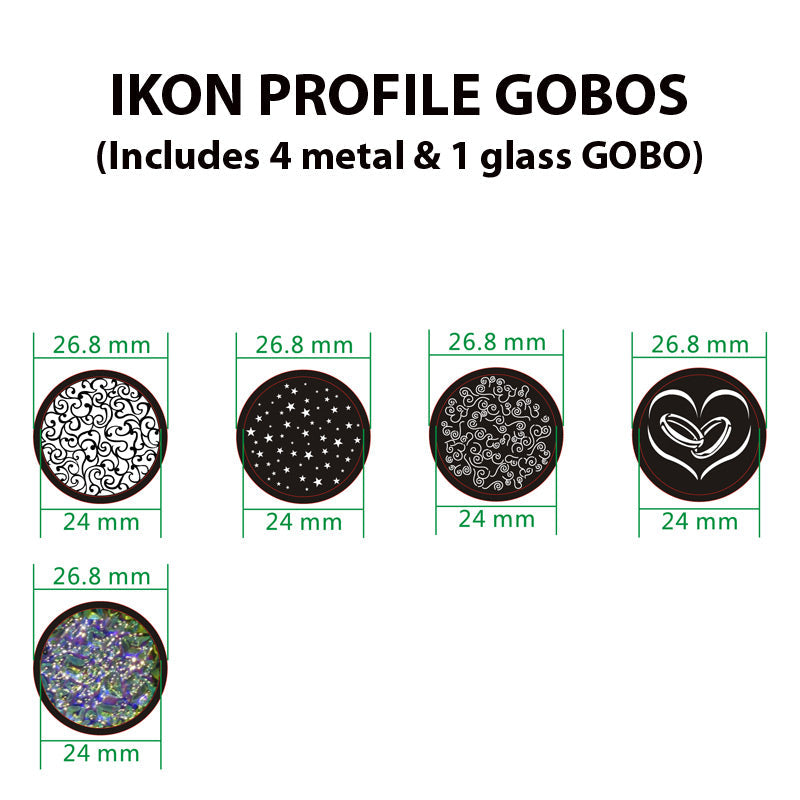

• One Glass Gobo Installed, 4 Metal Gobos Included
• Gobo size: 26.8mm; Viewable size: 24mm
• Drop in Gobo Slot for Metal or Glass Gobos
• Color Frame For Color Filters
• Run all night – No Duty Cycle
• Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events
• Very low heat output
• Long life LED (Rated at approximately 50,000 hrs.)
• With Wired Digital Communication Network

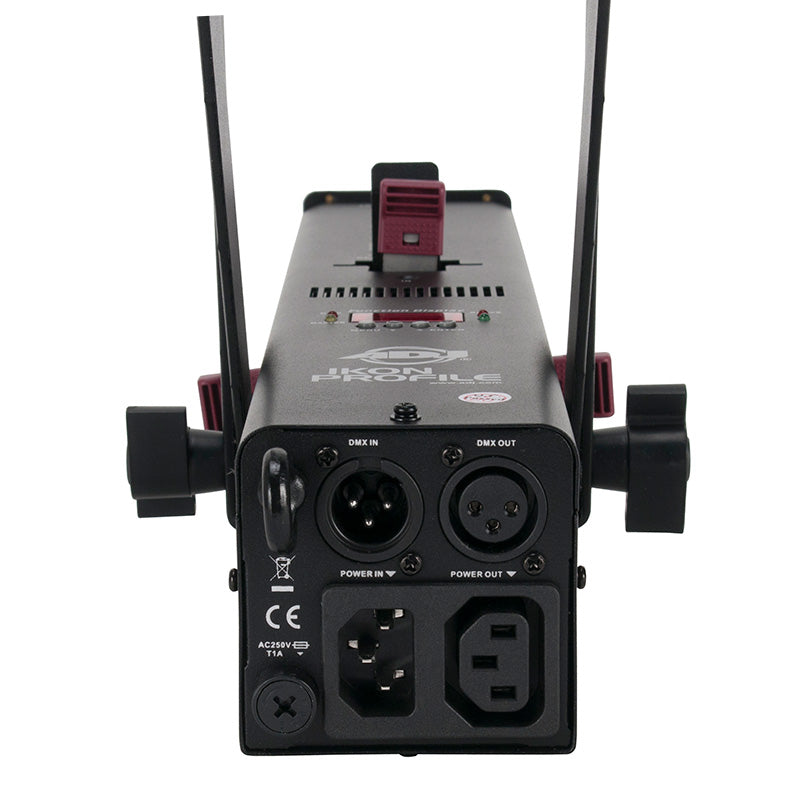

• IEC AC outlet on side to daisy chain power (up to 16 Ikon Profile’s @ 120V and 27 Ikon Profile’s @ 230V)
• Includes yoke to mount on a wall or hang from trussing
• UC IR Remote Control (Sold Separately) & Airstream IR Compatible (Transmitter Included.
• Multi-voltage: 100-240V, 50/60Hz• Power consumption: 44W max
• Dimensions (LxWxH): 17.75” x 6” x 5”/ 448 x 150 x 127mm
• Weight: 6 lbs. / 2.7 kg.
• ETL Approved

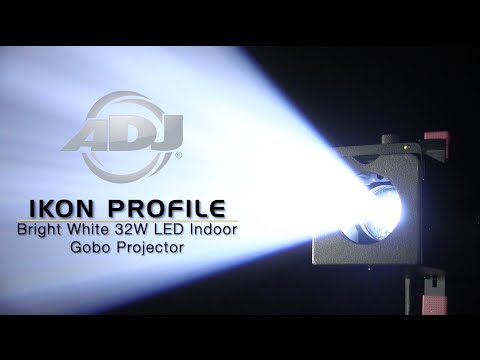

Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Ikon Profile CAD Drawing | CAD Drawing | Download |
| Ikon Profile Gobos | Gobos | Download |
| Ikon Profile Photometric Test Report | Photometric Test Report | Download |
| Ikon Profile Photometric IES Files | Photometric IES Files | Download |
| Ikon Profile - User Manual | User Manual | Download |

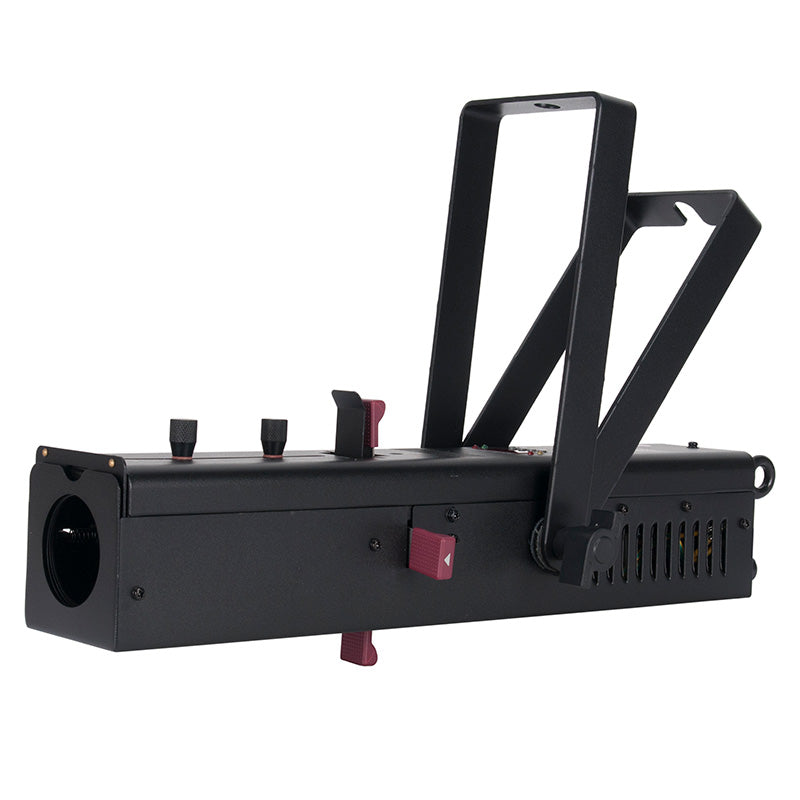

The Ikon Profile is a high output single GOBO Projector powered by a bright 32W (7500K) white LED. This fixture uses high quality optics for crisp, clear projection. User can adjust the LED brightness and strobing via DMX or by the included wireless UC IR remote control.

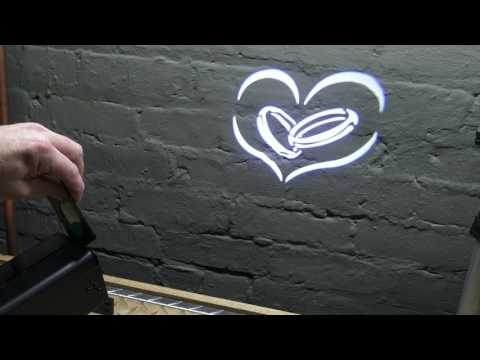

The Ikon Profile includes one textured glass GOBO. Users may also easily insert custom GOBOs in the fixture's GOBO slot located on the top of the fixture. Another key feature is the ability to manually control the beam angle, focus and framing shutters. The beam angle is adjustable from 15-30 degrees making it versatile for a wide variety of applications.
The Ikon Profile is also compatible with the UC IR wireless remote and the ADJ Airstream IR App for iOS device (both sold separately).
Learn more about the Ikon Profile in our product spotlight article by CLICKING HERE
