Hydro Wash X19
UPC#: 818651028232
Advantage Points: 4600
Redemption Points: 92000
SKU
HYD190

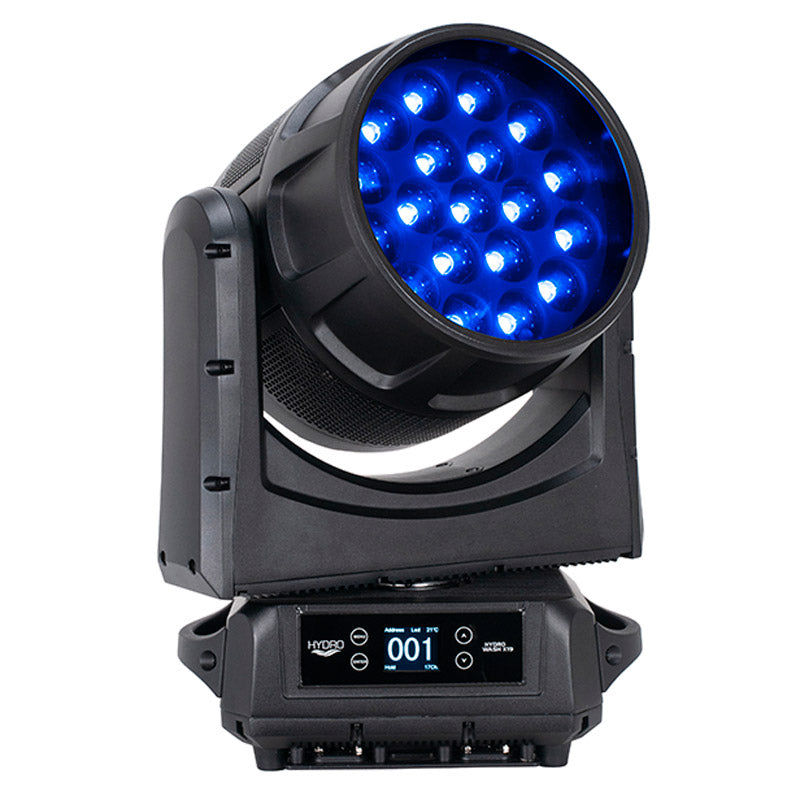

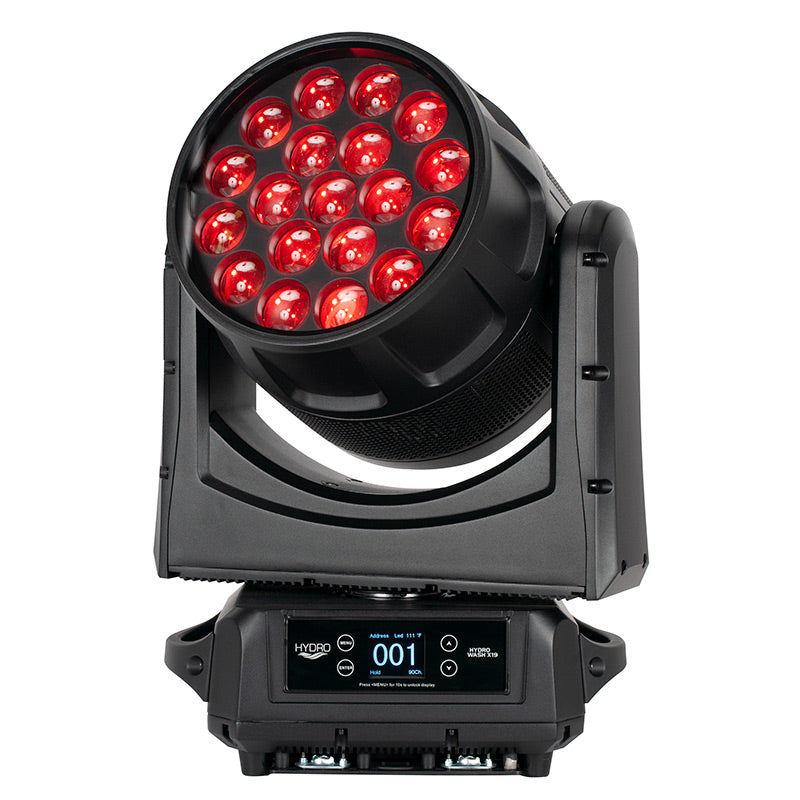

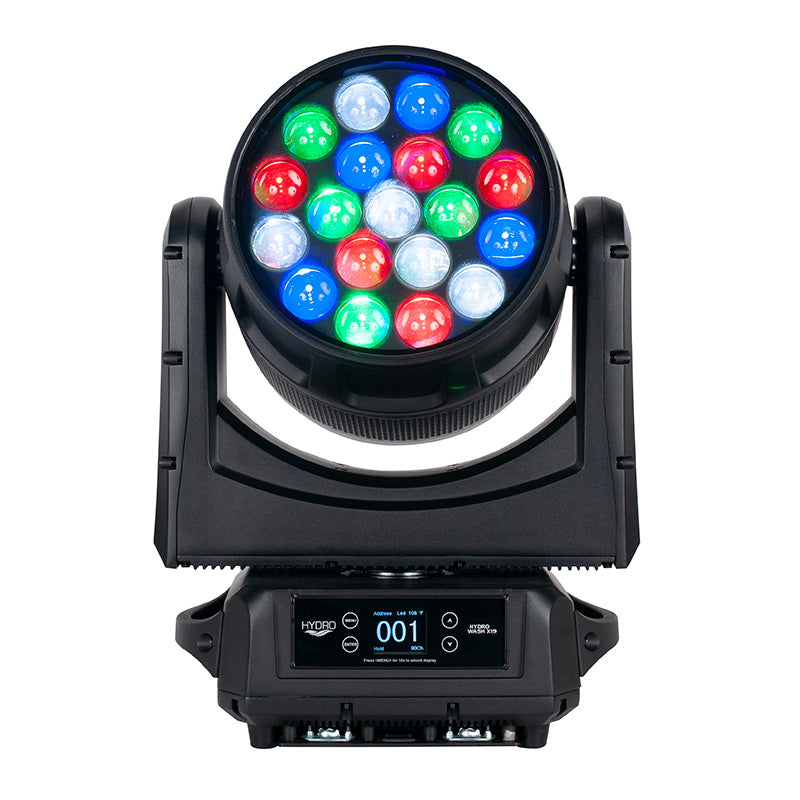

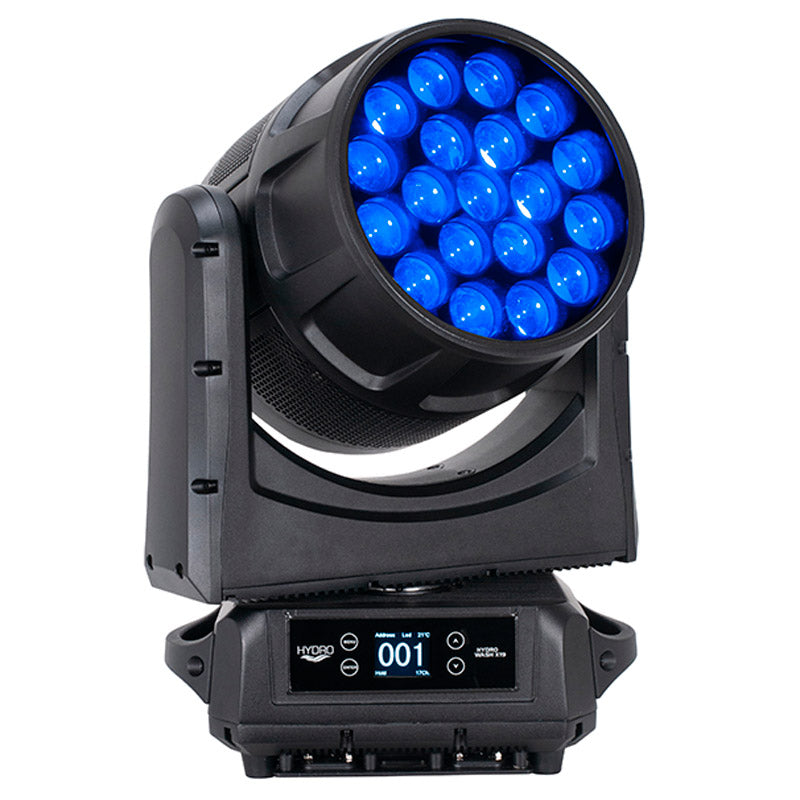

760W LED IP65 outdoor rated moving head wash designed for indoor or outdoor use. Its durable metal casing protects it from dust, sand, moisture and liquids. Features: 19x Osram 40W RGBW (4-IN-1) LEDs, WiFLY wireless DMX, motorized zoom (6 ~ 40-degrees) and is fully pixel mappable.
Light Source:
• 19x Osram 40W RGBW (4-IN-1) LEDs
• 7500 lumens
Features:
• IP65 outdoor rated – protects fixture from dust, sand, moisture and liquid (For Temporary Outdoor Use Only)
• Motorized Zoom: 6 ~ 40-degrees
• Firmware Upgrade: Update via IP65 RJ45 port (with rubber protective cover)
• Antenna Range: 98.42ft (30m)
Construction:

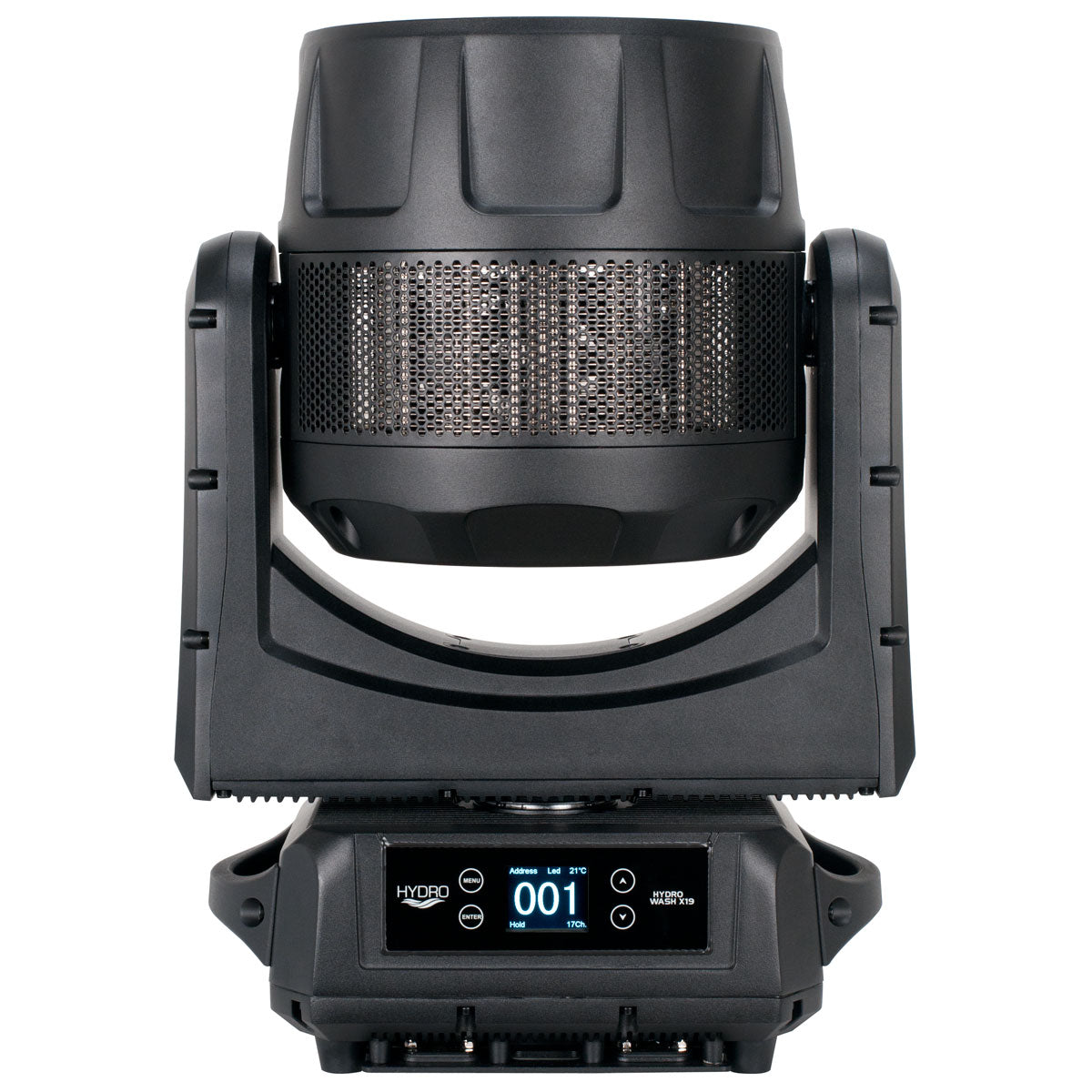

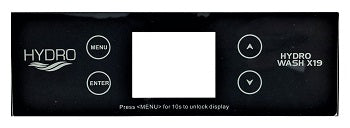

• Color display with touch buttons
• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
• Power In: IP65 locking power input (with rubber protective covers over connection)
• All metal case design
Control:
• WiFLY EXR Wireless DMX built-in
• Fully pixel mappable
• 6 DMX channel modes: 16, 20, 26, 30, 88 & 90 channels
• Protocols: DMX-512, RDM (Remote Device Management), KlingNet and Artnet
• Control modes: DMX-512, KlingNet and Artnet
• 0-100% dimming plus 16-bit fine dimming
• 6 dimmer modes
• Strobe & pulse effects
• Gamma correction: 1.0, 2.0, 2.2, 2.4, 2.6 and 2.8
• With Wired Digital Communication Network
Pan/Tilt:
• Pan/Tilt: 540-degrees / 230-degrees
• 16-bit Fine Pan
• 16-bit Fine Tilt
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Maximum power draw: 990W
Dimensions & Weight:
• Dimensions (LxWxH): 15.25” x 11” x 20.75” / 384x275x524mm
• Weight: 53 lbs. / 24 kg.
Optional Road Cases:
• DRC MHX: two Hydro Wash X19 fit in the DRC MHX Road Case
Approval / Ratings
• CE| cETLus |IP65 Approved (Control # 4000358)
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Hydro Wash X19 Cut Sheet | PDF File (Revised Feb. 2023) | Download |
| Hydro Wash X19 - DMX Traits | DMX Traits | Download |
| Hydro Wash X19 - User Manual | User Manual | Download |
| Hydro Wash X19 Zoom 50 CRI Photometrics Test Report | Photometrics Test Report | Download |
| Hydro Wash X19 Zoom In Full On Photometric Test Report | Photometric Test Report | Download |
| Hydro Wash X19 Zoom 50 percent Full On | Photometric Test Report | Download |
| Hydro Wash X19 Zoom Out Full On Photometric Test Reports | Photometric Test Reports | Download |
| Hydro Wash X19 Vectorworks Symbol | Vectorworks Symbol | Download |
| Hydro Wash X19 Dimensional Drawing | Dimensional Drawing | Download |
| Hydro Wash X19 2D CAD Drawing | 2D CAD Drawing | Download |
| Hydro Wash X19 3D CAD Drawing | 3D CAD Drawing | Download |
Available now from ADJ USA
With robust construction and IP65-ratings, the Hydro Wash X19 is designed for both indoor or outdoor use. Its durable metal casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces where wash lighting is a must. This groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to its long-life LED and sealed casing design.
The Hydro Wash X19 has a wealth of features such as motorized focus (6 ~ 40-degrees), WiFLY wireless DMX, fine pan/tilt and dimming, 6 dimmer modes, LED refresh rate and gamma control settings.

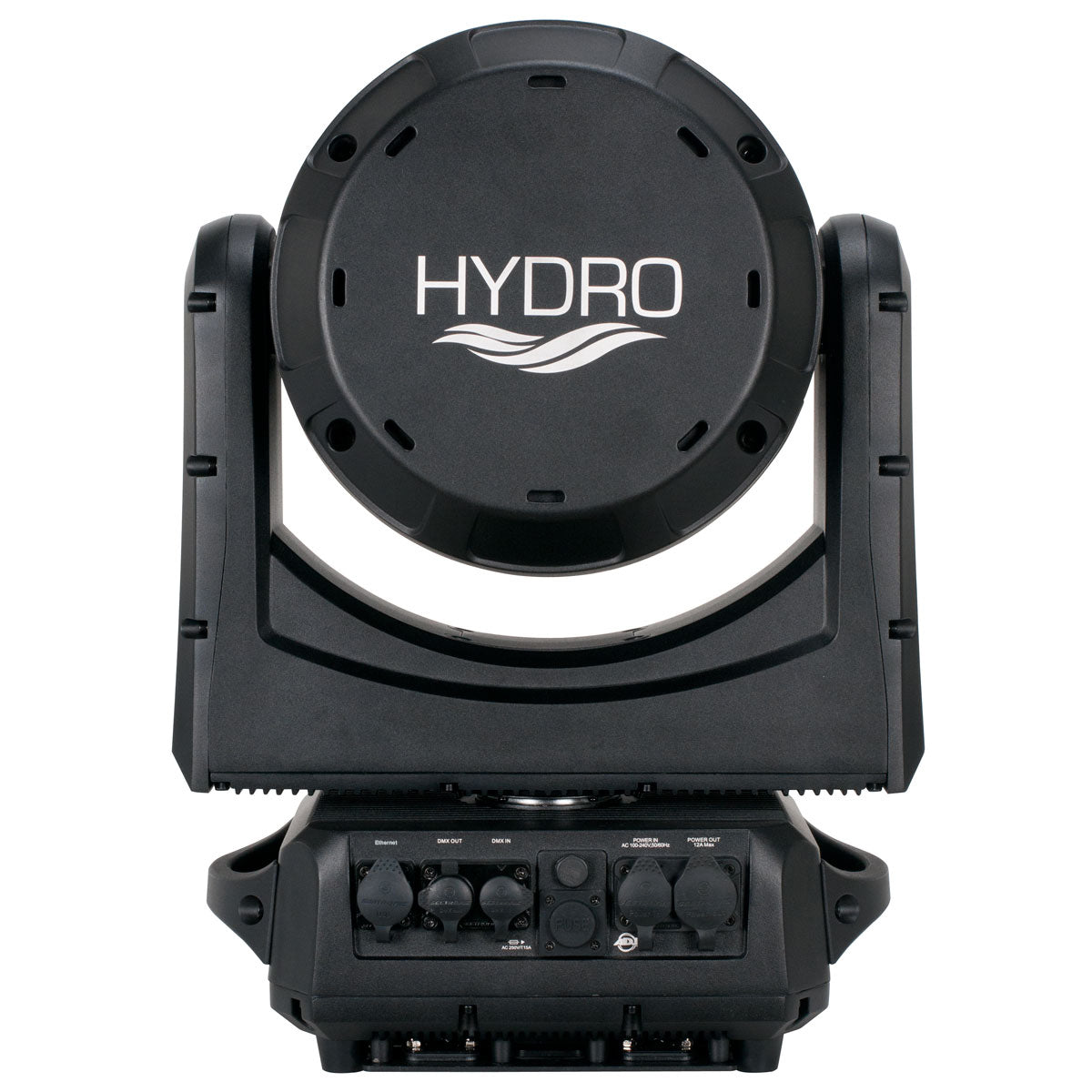

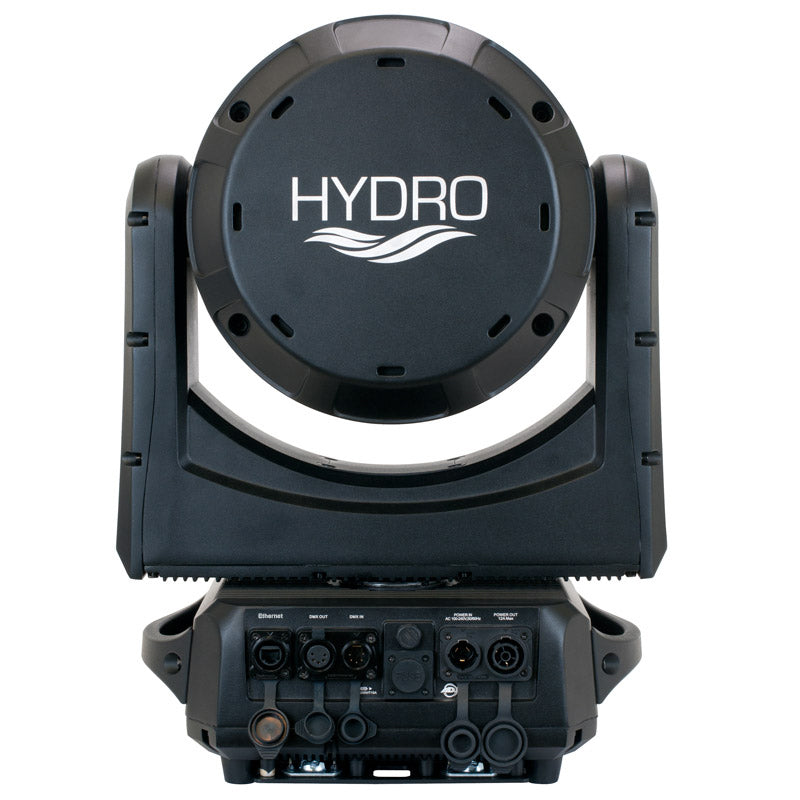

Its fitted with 5-pin DMX In/Out and electrical In/Out connectors to daisy chain power. It offers a RJ45 port for software updates. All connections are IP65 rated with rubber protective covers.
