H2O DMX IR

UPC#: 819730016560
Advantage Points: 475
Redemption Points: 9500
SKU
H2O181

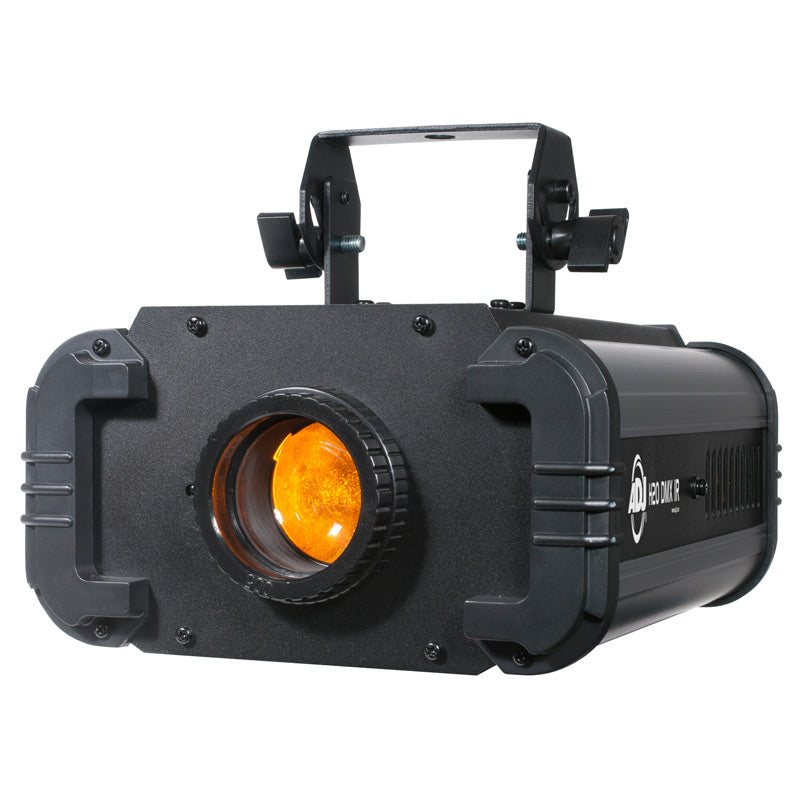

Experience the mesmerizing simulated water effect with the ADJ Lighting H2O DMX IR lighting fixture. With an 80W LED source and three DMX channels, this versatile fixture is perfect for projecting onto walls, ceilings, or floors, and can be used with or without fog. Its compact design, 4-button digital display, and easy installation make it ideal for creating stunning lighting displays at any event or performance.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

• Bright 80W LED source simulated water flowing effect

• Designed to project on walls, ceilings or floors with or without fog –

  great for mood or background lighting

• 3 DMX Channels (Dimming, Glass Wheel, Colors)

• 3 operation modes: Show Mode, Manual Mode, & DMX Control

• Stand Alone or Primary/Secondary Configuration

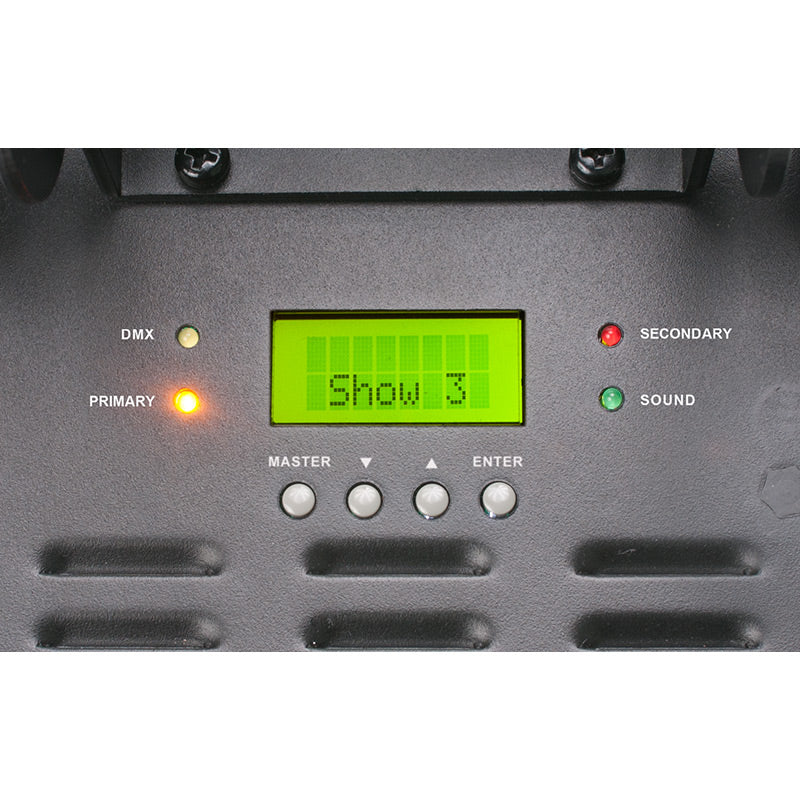

• Digital DMX Display with 4-button menu for easy navigation

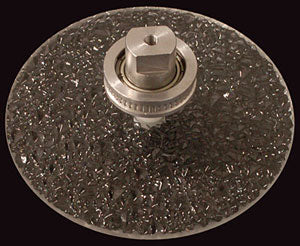

• Equipped with 2 glass effect wheels and 1 independent dichroic color wheel

• 5 colors + White & Split Colors

• High-tech plastic molded ends protect unit during transport and day-to-day use

• 0-100% Dimming (via DMX)

• Manual focusing lens

• Beam angle: 37 degrees or 27 degrees (optional)

• Includes hanging bracket

• Run all night – units stays cool – no duty cycle

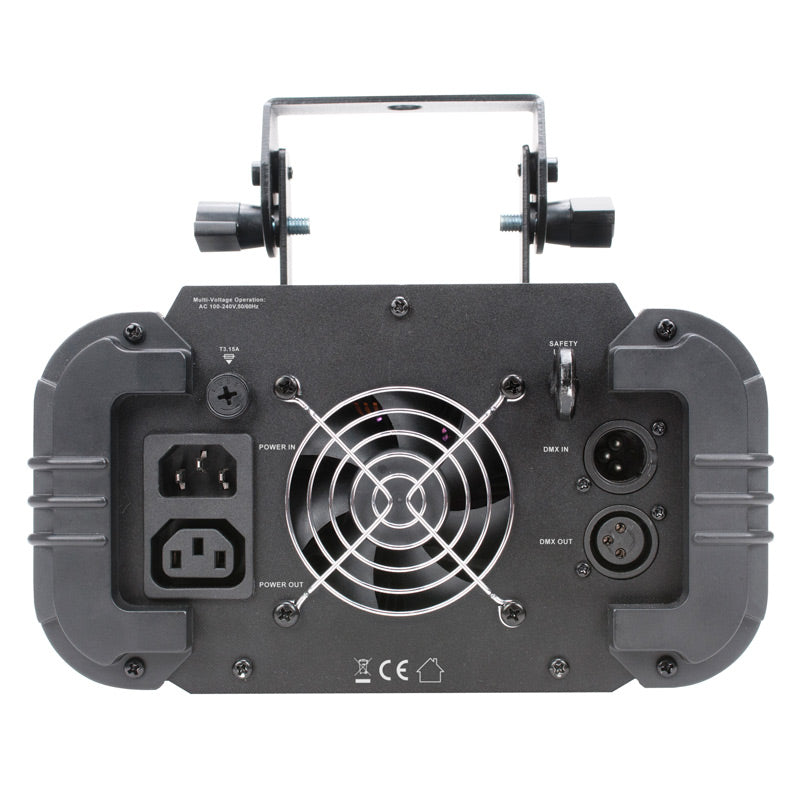

• IEC In & Out to Daisy chain Power (Connect up to 10 Fixtures @ 120V & 17 Fixtures @ 230V)

• ADJ UC IR Compatible (sold separately)

• Fan cooled

• Safety hook on rear panel

• Power consumption: 70W

• Long life 80W LED Source (30,000 hr. rating)

• Multi-voltage operation: AC 120-240V 50/60Hz (IEC Plug)

• Dimensions (LxWxH): 11.75”x 9”x 8” / 301 x 232 x 207mm

• Weight: 9 lbs. / 4 kg.

• cETLus approved (Control #4000358)


Videos

Downloads

The following downloads are available for this product:

Title Description
H2O DMX IR User Manual User Manual Download

The ADJ Lighting H2O DMX IR is a cutting-edge lighting fixture designed to bring a dynamic water-like effect to your lighting display. With an 80W LED source, this fixture creates a mesmerizing simulated water effect that can be projected onto walls, ceilings, or floors. The H2O DMX IR can be used with or without fog and is great for mood or background lighting.


This fixture is equipped with three DMX channels (dimming, glass wheel, and colors) and three operation modes (Show Mode, Manual Mode, and DMX Control), giving you complete control over your lighting setup. The digital DMX display with a 4-button menu makes navigation easy, while the 0-100% dimming (via DMX) and manual focusing lens allow you to fine-tune the lighting to your exact specifications.


Built to last, the H2O DMX IR features an 80W LED source with a long-life rating of 30,000 hours, and multi-voltage operation (AC 120-240V 50/60Hz). The fixture is fan-cooled and includes a safety hook on the rear panel, ensuring reliable and safe operation. With a power consumption of only 70W, the H2O DMX IR can run all night without the need for a duty cycle.


The H2O DMX IR can be used in a stand-alone or primary/secondary configuration and includes a hanging bracket for easy installation. With its compact dimensions of 11.75” x 9” x 8” and weight of 9 lbs., the fixture is easy to transport and install.


This professional-grade lighting fixture is cETLus approved (Control #4000358), ensuring the highest level of safety and reliability. The H2O DMX IR is perfect for creating a stunning lighting display at your next event or performance.
