Fusion FX Bar 5

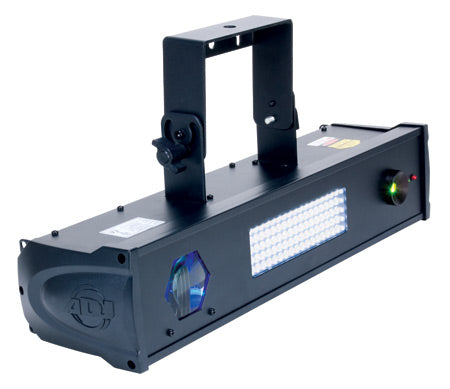

The American Dj Fusion FX Bar 5 is a member of the popular Fusion Series. The difference is that this model has three built in effects in one, you heard right, one unit. It is an entire light show on its own. It features a TRI Color LED Moonflower, a LED Strobe effects, and an ADJ "Galaxian Style" red and green laser. You can set up activation of this fixtures effect with Sound Activation, Linking them in a Master/Slave configuration, or by the DMX protocol. For truly easy control get an easy to use UC3 controller.
The Fusion FX Bar 5 only draws 32W of energy, and has incredibly long life LEDs with over 50 thousand hours of life. Random strobes can be set up from slow to fast pacing. The value in the Fusion FX Bar 5 is undeniable, having three effects on the same fixture is sure to bring your light show to the next level for a fraction of the price. Many professionals use the Fusion FX Bar 5 over the multitude of fixtures you’d need to get the same effect. Bring the house down with not just your music but this incredible deal and enjoyable lighting effect.
- Unique and compact lighting fixture – Member of the ADJ Fusion Series
- Includes 3 FX in one light: bright white LED Wash/Strobe effect + TRI Color LED Moonflower + Red or Green laser effect
- Over 500 Red or Green laser beams
- LED Wash/Strobe includes 90 white 5mm LEDs
- TRI Color LED Moonflower includes one 3W TRI LED + 1.8 degree Stepper Motor for smooth movement
- Laser diode: 30mW Green Laser + 80mW Red Laser (FDA Approved)
- DMX-512 protocol (7 DMX Channels)
- 3 operation modes: DMX, Sound Active & Master Slave

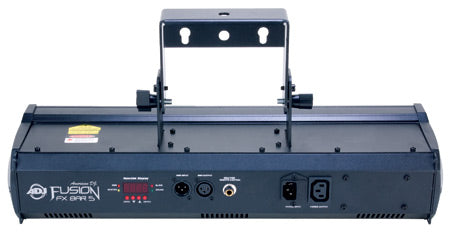

- Digital DMX Display with 4-button menu for easy navigation
- Sound active from built-in programs
- Random strobe slow to fast
- Linkable via 3-pin XLR connectors
- Includes mounting bracket
- Run all night – no duty cycle
- 0-100% Dimming (Strobe + Moonflower in DMX Mode)
- Long life LEDs (50,000 hr. rating)
- Compatible with the UC3 easy-to-use controller (sold separately)
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Power Consumption: 32W
- In/Out IEC power connections to daisy-chain power (Power connect up to 10 units)
- Dimensions (including bracket - LxWxH): 21.5”x7”x5.75” / 542x178x143mm
- Weight: 11 lbs. / 4.7kg.
