Focus Spot Two

UPC#: 819730018298
Advantage Points: 1060
Redemption Points: 21200
SKU
FOC355
New Focus Series, high powered 75 watt LED with motorized focus, one rotating gobo wheel, one color wheel, gobo indexing, EZ Gobo replacement, built-in 3 watt UV led, DMX, built-in programs, sound active and UC IR wireless remote compatible.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

• High Output LED Moving Head spot
• 1 x 75W Cool White LED & 3W UV LED

• Motorized Focus

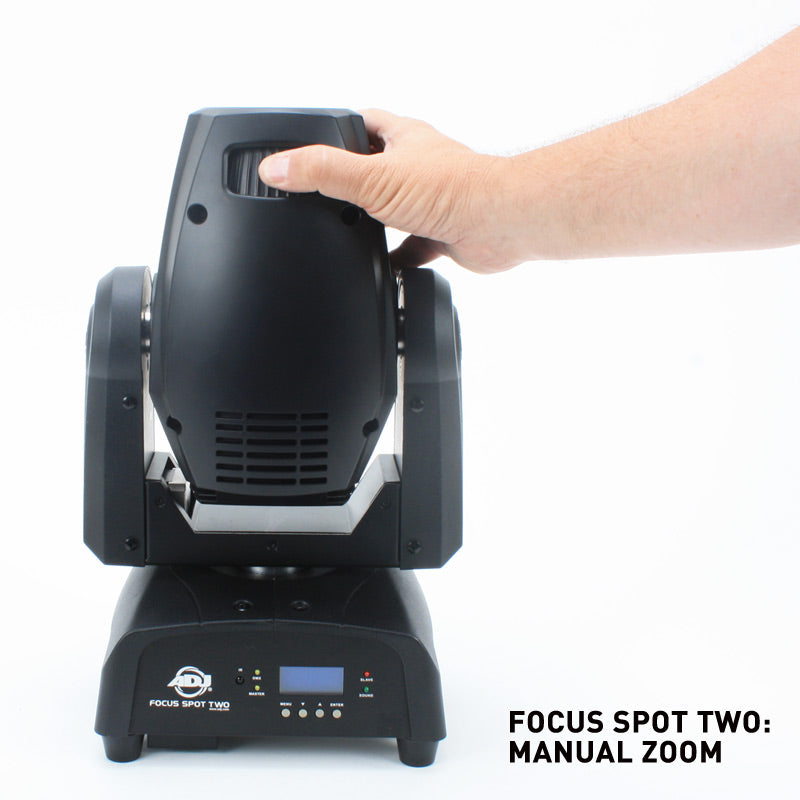

• Manual Zoom knob on head: 15 ~ 20-degree beam angle

• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled

• 4 Built-in lighting shows

• 16 & 18 DMX channel modes

• 8 Colors + Spot & Split Colors

• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm
• Gobo Indexing

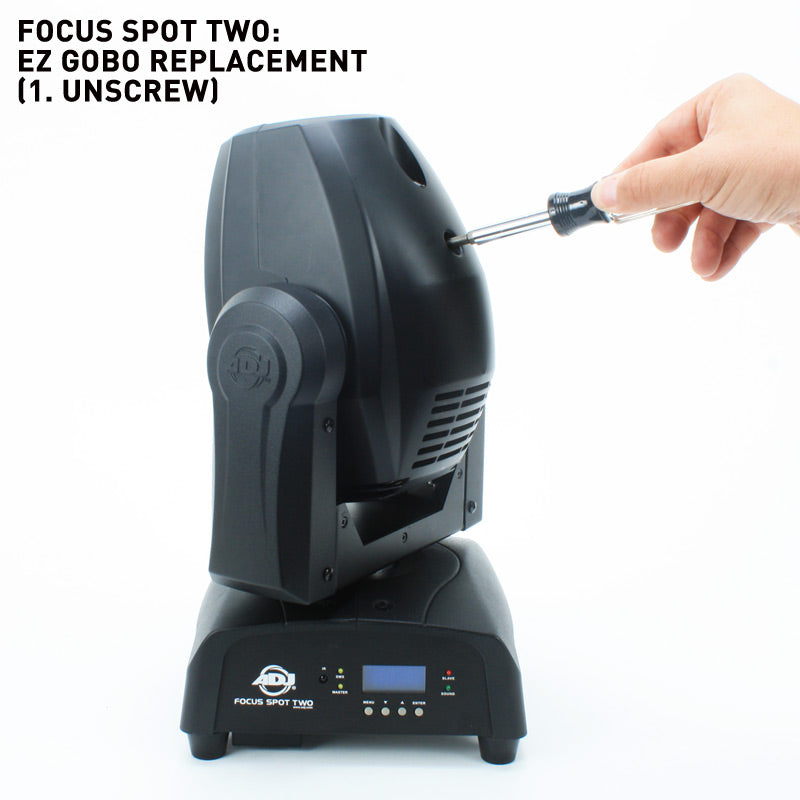

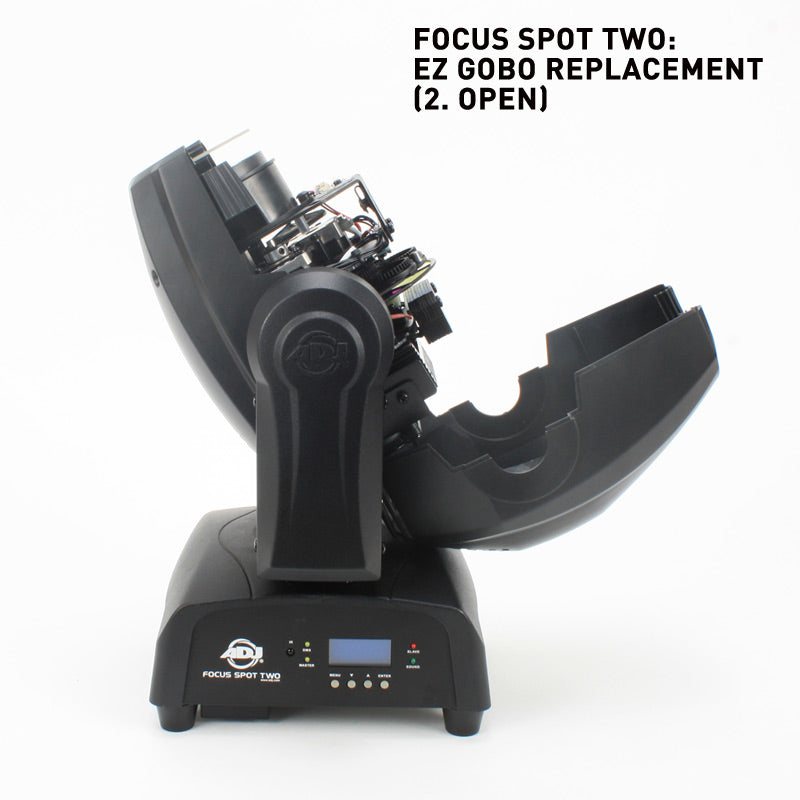

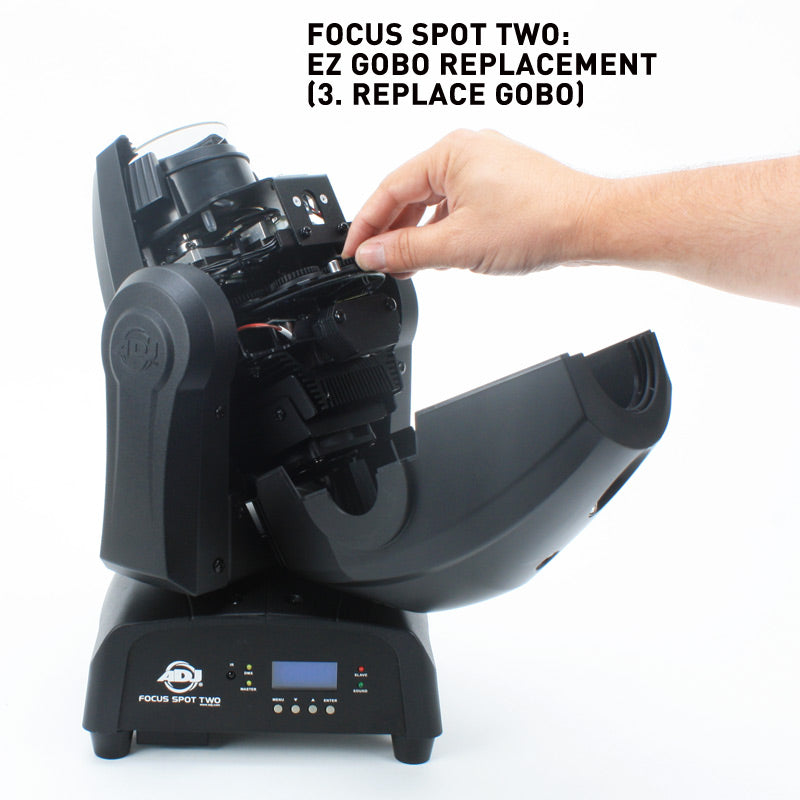

• EZ Gobo replacement with hinged head cover

• Electronic Dimming: 0% - 100%

• 5 Dimmer Curves

• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement

• Pan: 540-degree; Tilt: 230-degree

• Gobo Shake effect

• 6-facet prism effect

• 16-Bit Fine Pan/Tilt control
• 4-Button DMX LED menu
• Stepper motors with micro stepping

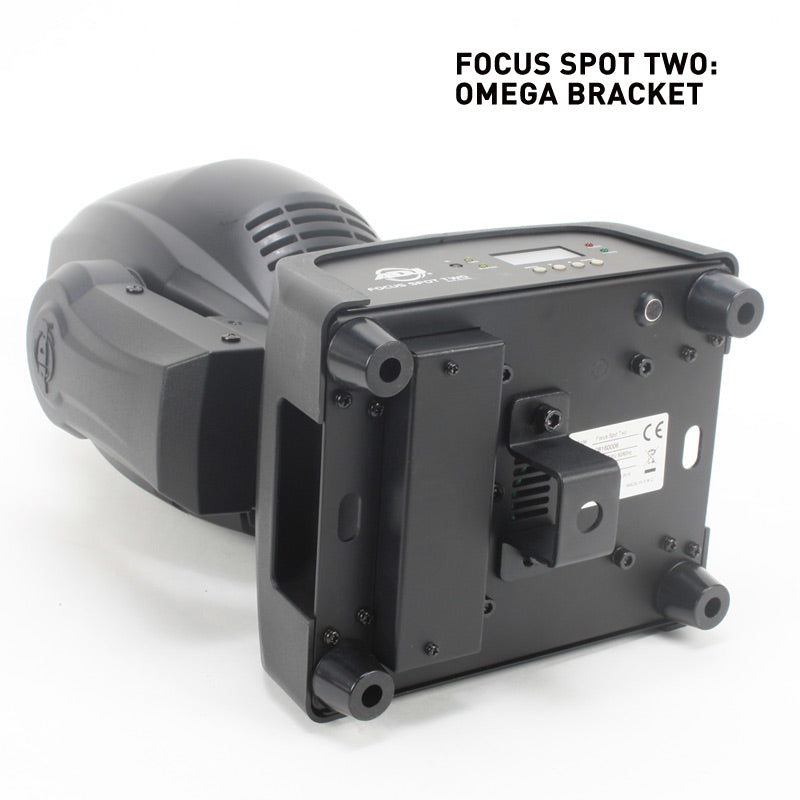

• Includes Omega bracket for truss mounting
• 3-pin XLR In/Out
• With Wired Digital Communication Network
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast

• UC IR & Airstream IR Compatible (Sold Separately)

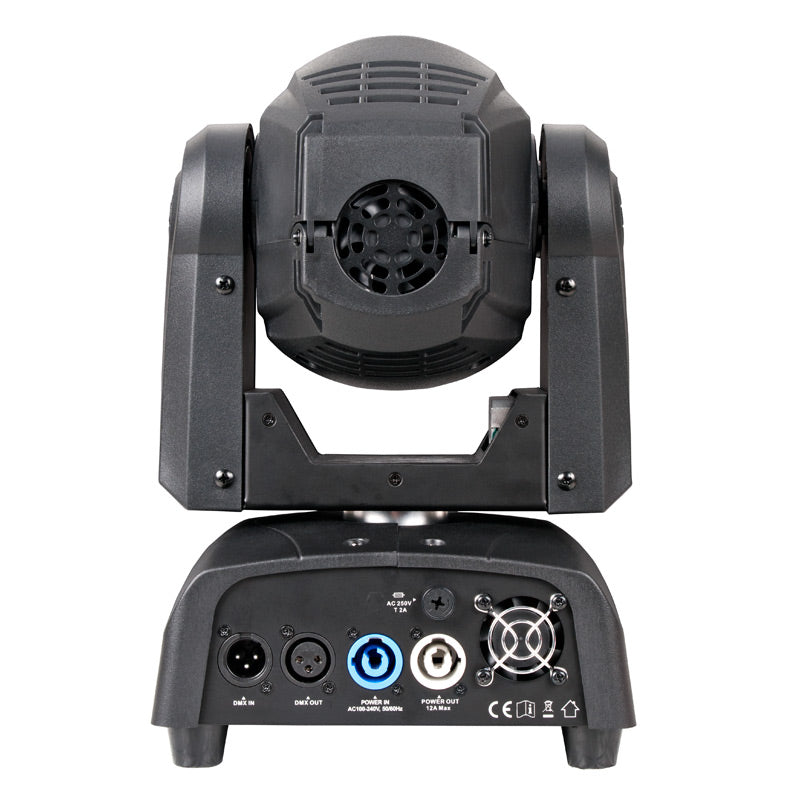

• Locking AC In/Out on rear to daisy chain power (up to 14 Focus Spot Two’s @ 120V and 26 Focus Spot Two’s @ 240V )
• PWM (Pulse Width Modulation): 4K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 51.4; Back: 50.8; Left: 51.2;
Right: 51.3; Top: 46.5

• Light Source: 1 x 75W Cold White LED (8000˚K, 50,000 hr.) & 3W UV LED

• Long Life LED (Rated at approximately 50,000 hrs)

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 108W
• Dimensions (LxWxH): 6.75” x 9.25” x 15.25”/ 173 x 237 x 385mm
• Weight: 16lbs. /7.3 kgs.
• ETL Approved
• Includes: Omega bracket to hang on truss & 5-foot locking power cord

• Protect two Focus Spot Twos with the ADJ Tough Bag ISPx2

Videos

Downloads

The following downloads are available for this product:

Title Description
Focus Spot Two CAD Drawing CAD Drawing Download
Focus Spot Two Color & Gobo Wheel Color & Gobo Wheel Download
ADJ Focus Spot Two User Manual User Manual Download
Focus Spot Two Photometric Test Reports Photometric Test Reports Download
Focus Spot Two Photometric IES Files Photometric IES Files Download

The ADJ  Focus Spot Two is a 75W LED Moving Head with a 3W UV included for black lighting or additional color hues.  In addition, ADJ has fitted the FS2 with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 15 ~ 20-degrees.



The Focus Spot Two is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a an  LED spot Moving Head. It has 16 & 17 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, Locking In/Out power connectors, and a 4-Button DMX LCD menu.

At the 2018 Pro Mobile Conference in the UK, the ADJ Focus Spot Two received the Pro Mobile Award for “new Lighting/Video Product of the Year.” A great big thank you to everyone who uses the Focus Spot Two every week as mobile entertainers.


Protect two Focus Spot Twos with the ADJ Tough Bag ISPx2.

Learn more about the Focus Spot Two in this product spotlight: http://tinyurl.com/jhpmepy

Read the Focus Spot Two press release: http://tinyurl.com/hs6ns7q
