FLAT PAR TRI7

SKU:
Advantage Points: 200

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • Ultra bright slim Par Can with 7x 3-Watt TRI LEDs (3-in-1 RGB)
  • Great for performance stages where traditional par cans emit a lot of heat onto performers
  • Low profile case design
  • Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC - sold separately)
  • 7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel modes
  • 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
  • Smooth RGB color mixing (fast or slow color change operation)
  • TRI LED (3-in-1) projects no RGB shadows
  • 32 built-in Color Macros
  • Color strobe effect
  • Electronic Dimming: 0 - 100%
  • Beam angle: 40-degree
  • Linkable via 3-pin XLR cable (In/Out)

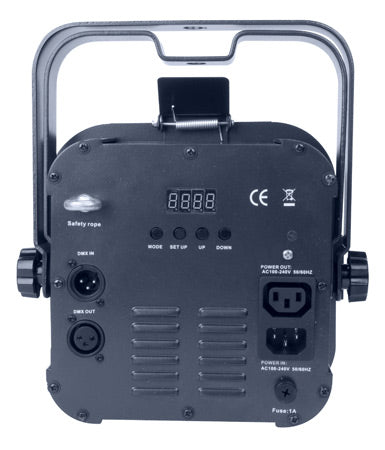

  • 4-button LED DMX display on rear panel
  • Dual bracket system allows fixture to be hung or set on the ground
  • IEC AC IN/OUT outlets on rear to daisy chain power
  • Safety hook on rear panel
  • Includes gel frame for optional diffusion filters
  • Run all night - No duty cycle
  • Long Life LEDs (50,000 hrs.)
  • Power Draw: 25W max
  • Multi-voltage operation: AC 90V-240V 50/60Hz
  • ETL listed
  • Dimensions (LxWxH): 10.75”x9”x4.25”/272x230x105mm
  • Weight: 7 lbs./2.8 kg.

ADJ LED RC Infrared Remote Control (sold separately):

  • Black Out: Turns fixture On/Off
  • Auto Run: Automatically run through built-in programs
  • Program Selection: Access units built-in programs
  • Flash: Strobe effect
  • Speed: Control speed of Auto Run
  • DMX Mode Select
  • Sound Active: Activates sound active mode
  • Slave: Designates the fixture as a “slave” fixture in the Master/Slave configuration
  • Set Address: Set DMX Address on a fixture
  • RGB Buttons: Adjust RGB colors with the “+” and “-“ buttons
  • + and - Buttons: Adjust flash rate, speed of the Auto Run and Program Selection

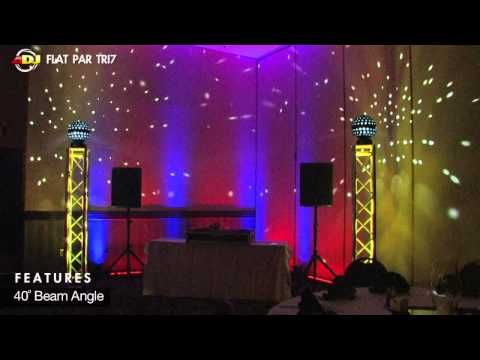

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Flat Par TRI7 User Manual v2 IR ON/OFF Download
Flat Par TRI7 User Manual Download
Flat Par TRI7 User Manual & Photometrics Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for FLAT PAR TRI7
