Event Bar DMX

SKU: EVE598

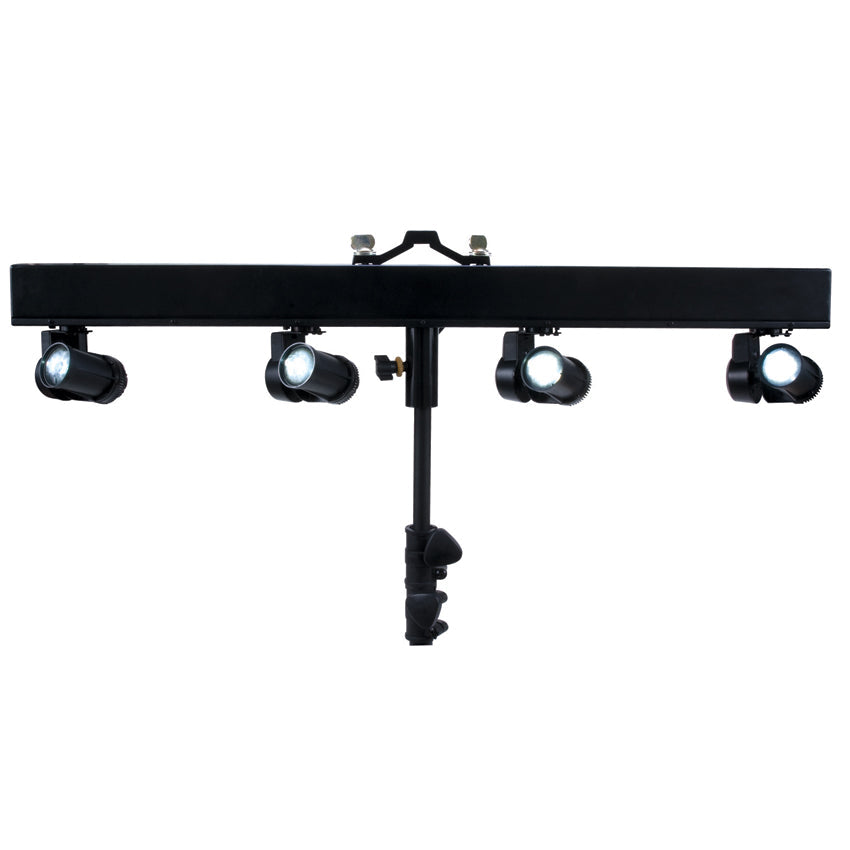

This LED Pinspot is an easy to use DMX controlled or Sound Active scanning system utilizing four white light heads. With individual dimming and strobe, the Event Bar DMX from ADJ provides superb lighting across a large area. Easy to set-up and use the Event Bar DMX also has a 50,000 hour LED lifespan.
Advantage Points: 600

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Get the lighting just right at your night club, bar, or stage production. The Event Bar DMX LED always you to implement dynamic white lighting across a large area with its 4 individually dimming and strobe controllable heads. Set-up is easy and with built-in features and music activation. Take your events to the next level and light up the dancers to the sound of the music playing with the Event Bar DMX. Controlled from 17 DMX Channels, with Master/Slave, stand alone, and music activated mode you'll have no trouble getting the lighting just right. The scanning pinspot heads of the Event Bar DMX will make your dance floor exciting for your guests, and you'll be excited with the years you can get out of it with it's quality steel construction. Make the Event Bar DMX a part of your light entertainment system and you'll have the lights you need to make your shows succeed.

Specifications

Specifications

 Features
  •   LED Pinspot, 4 Head X-Y Bar
  •   Full DMX Control
  •   Full Dimming On Each Pinspot Head
  •   Easy-To-Use Display For DMX or Internal Program Access

 Colors
  •   White LED

 Shutter/Dimmer
  •   Strobe effect on each pinspot head
  •   Full dimming on each pinspot head
 Light Source
  •   Lamp: 4 x 3W White LED pinspots
  •   Lamp Life: 50,000 hours

 Optical System
  •   12° beam angle
  •   Optional 6° beam angle included

 Control
  •   17 DMX Channels / 1 DMX mode
  •   LED display. 360° Pan / 270° Tilt
  •   Master/slave, stand alone and music activated
  •   8 total motors
  •   Flicker free

 Operation Parameters
  •   Fan cooling
  •   Maximum Ambient Temperature: 40°C/104°F
  •   Truss Mount With Clamp or Mount on a Light Stand

 Power Supply
  •   Power Supply: 100V~240V, 50/60Hz
  •   Power Consumption 54W

 Connectors
  •   3-pin XLR connectors
  •   4 piece daisy chain power connect

 Dimensions and Weight
  •   Dimensions: 39” x 3” x 8” / 1000 x 80 x 202 mm
  •   Weight: 16.8 lbs. / 7.6 kgs

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Event Bar DMX User Manual (Rev. 7/12/13) Download
