Encore LP5IP

UPC#: 810087370251

Advantage Points: 400

Redemption Points: 8000

SKU

ENC355

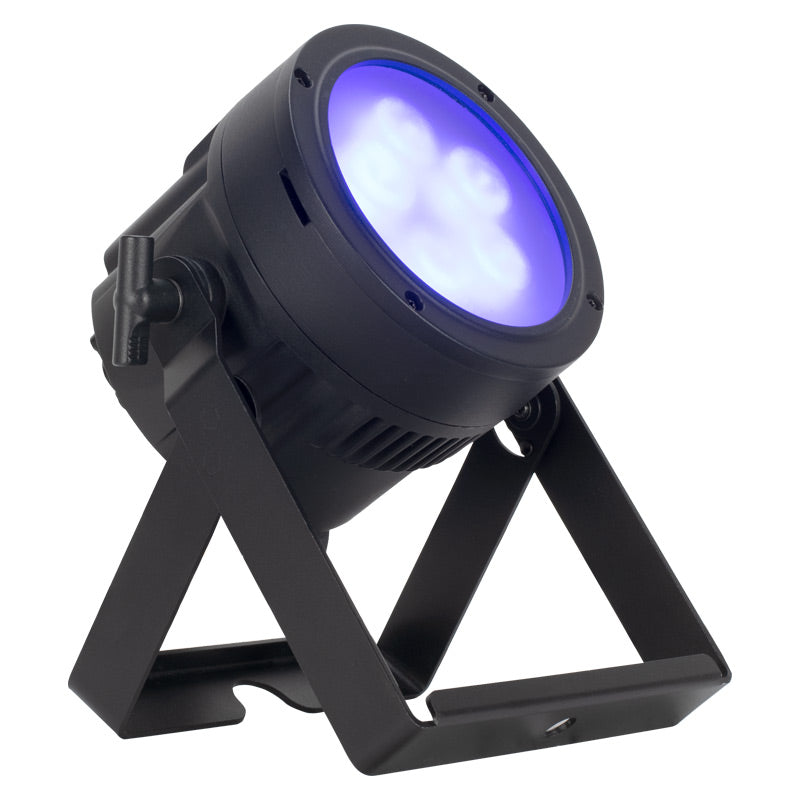

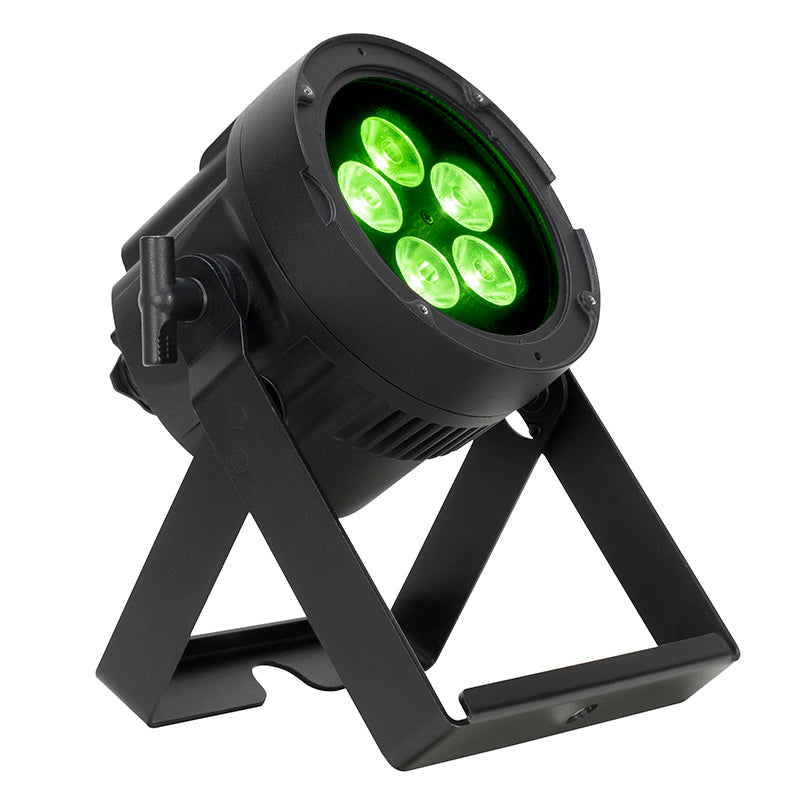

The ADJ Encore LP5IP is a versatile, heavy duty Par with five (5) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25° frost filter is included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

SOURCE:

• Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

PHOTMETRIC DATA:

High CRI Data

• Beam Angle: 9.7°

• Field Angle: 18.8°

• CRI: 83

• CRI R9: 54

• Color Temperature: 6942K

• Lux: 2179 @ 3M, 785 @ 5M

• Lumens: 771

Full ON Data

• Beam angle: 9.6°

• Field Angle: 18.8°

• CRI: 67

• CRI R9: -98

• Color Temperature: 21188K

• Lux: 1766 @ 3M, 636 @ 5M

• Lumens: 607

EFFECTS:

• Linear Color Temperature Control (2700K to 7000K)

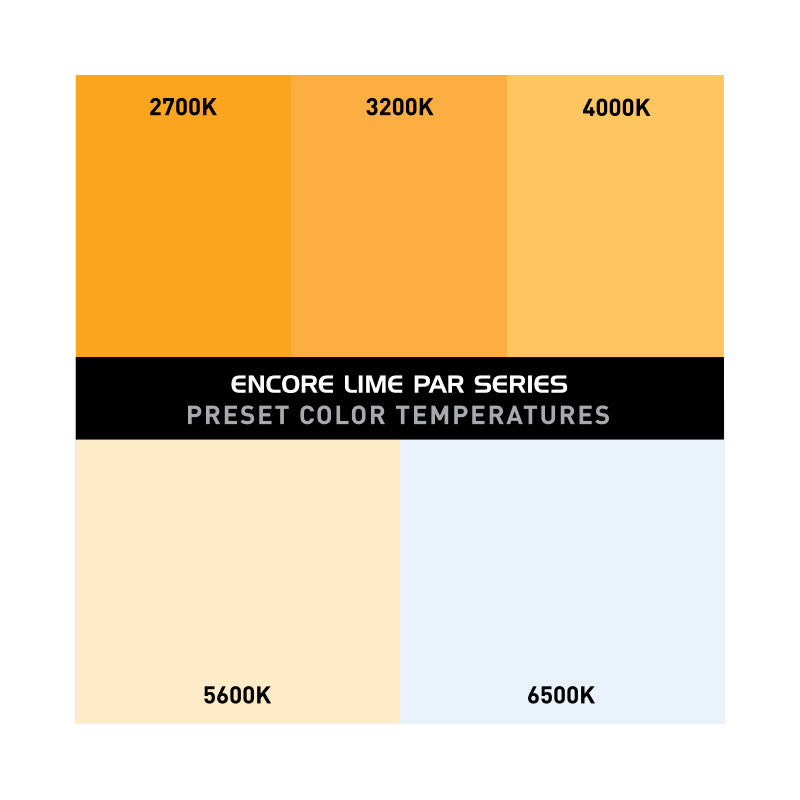

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

• 16-Bit Fine Color Control (Red, Green, Blue & Lime)

• 64 built-in Color Macros

CONTROL / CONNECTIONS:

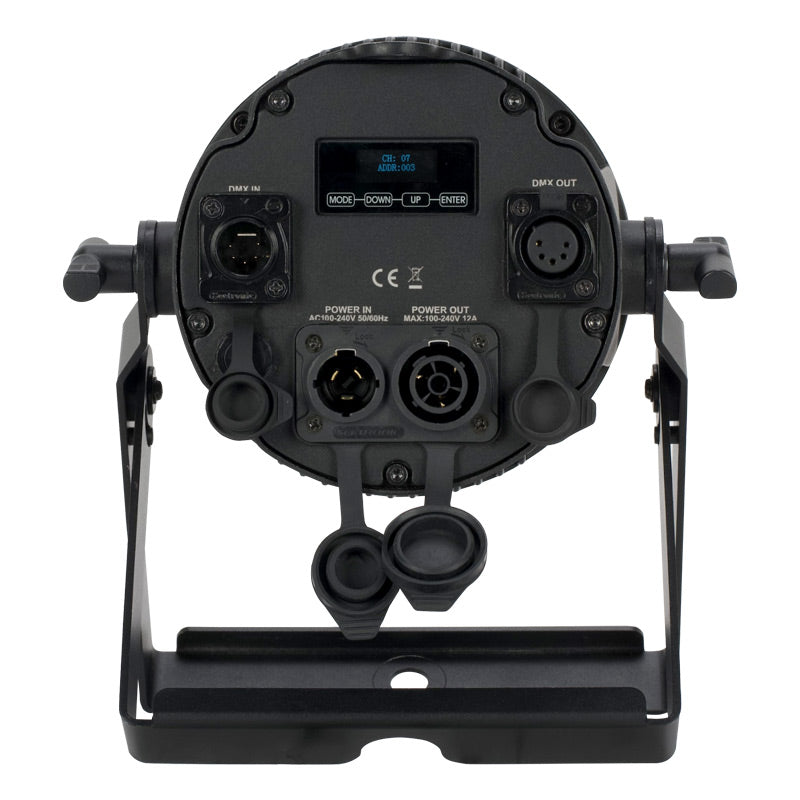

• 4-button, DMX digital display on rear panel

• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled

• Supports RDM (Remote Device Management)

• With Wired Digital Communication Network

• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)

• Flicker Free operation (No flickering on camera)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel

• Quiet fan mode

CONSTRUCTION:

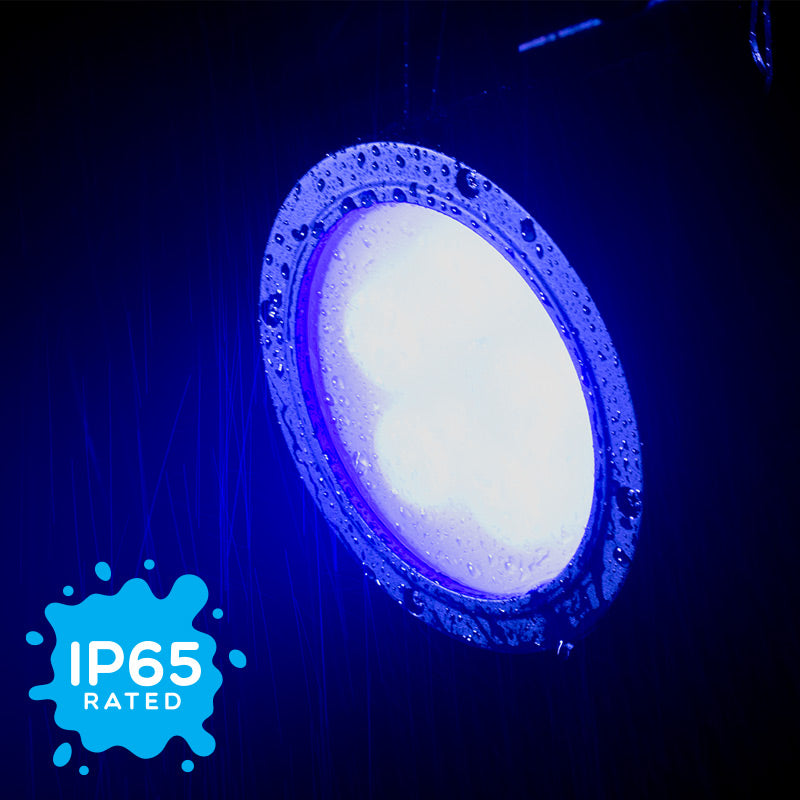

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand

• All metal construction

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets

• Locking, outdoor IN/Out Power connectors

• Data linkable via 5-pin XLR DMX connections

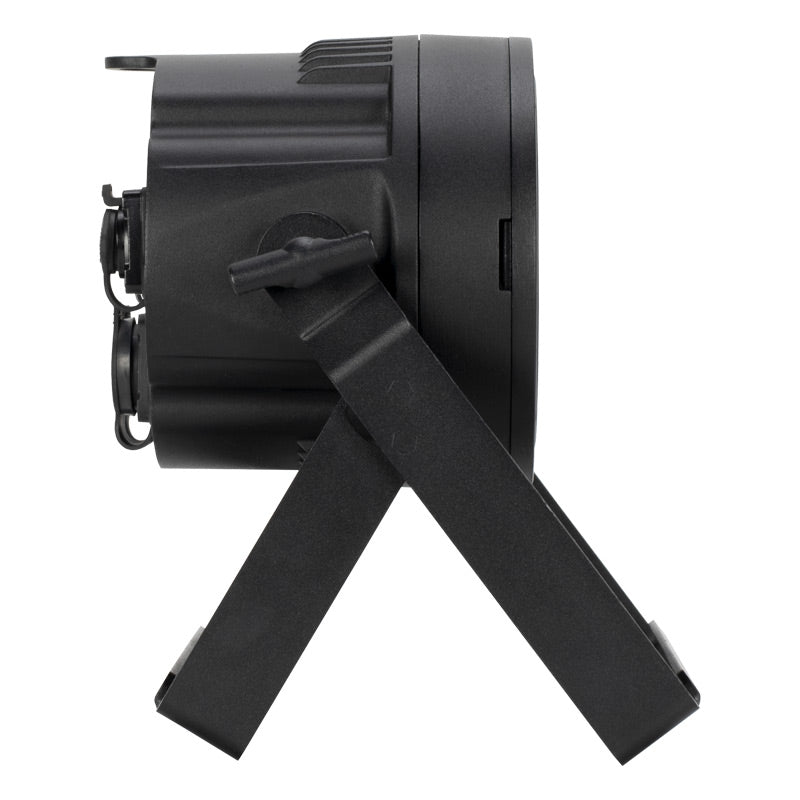

• Scissor Yoke & safety eye

ELECTRICAL / THERMAL:

• Multi-voltage operation: AC 100-240V, 47/63Hz

• Daisy chain: 21 units max (110V) / 44 units max (240v)

• Max power: 32W

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): Dimensions (LxWxH): 5.9” x 8.2”x 10.1” / 150.6mm x 209.0mm x 255.0mm

• Weight:5.3 lbs / 2.4 kgs

APPROVALS / RATINGS:

• cETLus (Control #4010765)

• IP65

INCLUDED ACCESSORIES:

(1) 25° Frost Filter

(1) Power Cord

OPTIONAL ACCESSORIES:

ELP5L100: 100-degree frost filter for the Encore LP5IP

ELP5L60: 60-degree frost filter for the Encore LP5IP

ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP

ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP

ELP5L20: 20-degree frost filter for the Encore LP5IP

Videos

Downloads

The following downloads are available for this product:

Title	Description
Encore LP5IP Cut Sheet	1.5MB PDF File (Revised May 2022)	Download
Encore LP5IP - 2D Cad	Encore LP5IP - 2D Cad	Download
Encore LP5IP - Dimensional Drawing	Encore LP5IP - Dimensional Drawing	Download
Encore LP5IP - Vectorworks Symbol 2023	Encore LP5IP - Vectorworks Symbol 2023	Download
Encore LP5IP - Vectorworks Symbol	Vectorworks Symbol Ver. 2022	Download
Encore LP5IP - User Manual	User Manual	Download
Encore LP5IP - DMX Traits	Encore LP5IP - DMX Traits	Download
Encore LP5IP Photometric Files	10MB ZIP with PDF files	Download
Encore LP5IP IES Files	IES Files in ZIP format	Download
Encore LP5IP - 3D CAD	3D CAD File	Download

Details

Available now from ADJ USA

The ADJ Encore LP5IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.

The Encore LP5IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

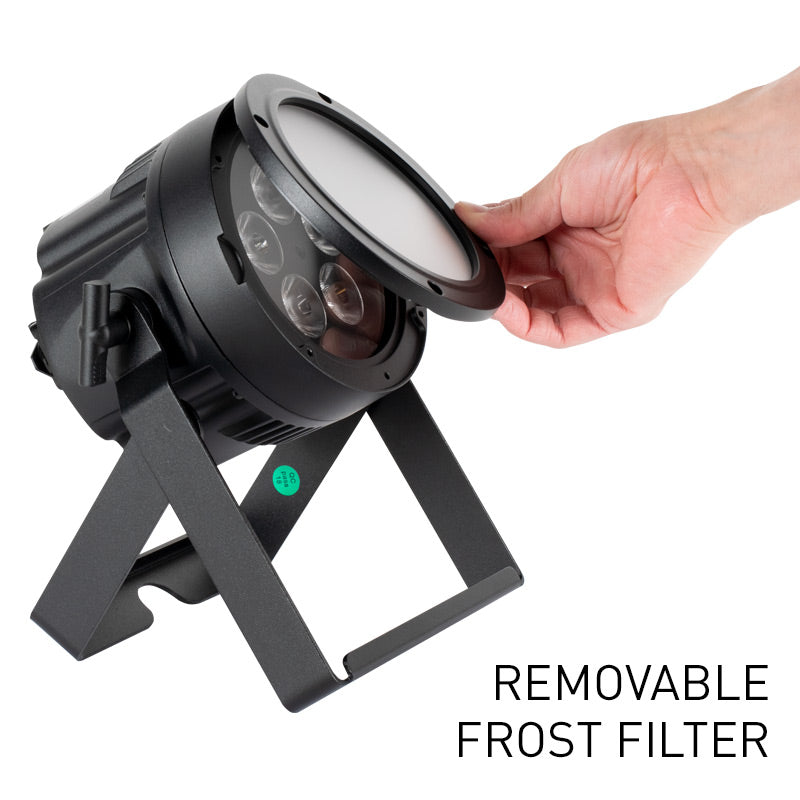

The Encore LP5IP includes a removable 25° frost filter. There are several additional frost filter options (sold separately) that customize the beam angle.

Click here to read the Encore LP5IP press release.
