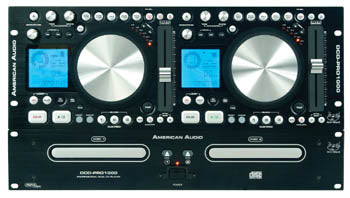

DCD-PRO1000
DCD-PRO1000

DCD-PRO1000

This item is discontinued
UPC: 640282016148SKU: DCD-PRO1000

DCD-PRO1000

Specifications

  • “PowerTouch&" , Touch sensitive interactive jog wheels (Patent pending)
  • Digital Scratching 2.0 (Accurate Scratching)
  • 2 Scratching modes: Digital Scratch mode, Beat Juggle mode
  • 9 On-board FX: Scratch, Filter, Echo, Trans, Skid, Phase, Flanger, Pan, Bop
  • Visual marker display: Reference point to view where the disc is playing
  • Effect layering
  • Digital B.P.M. counter: keeps digital FX in sync with music
  • 6 Preset Parameters settings for each FX
  • Tempo Lock (Master Tempo)
  • Parameter Ratio adjustment knob
  • Parameter Time adjustment knob
  • Pitch Bend: plusmn;4%, plusmn;8%, or plusmn;16%
  • “Hyper&" Pitch (up to plusmn;100%)
  • 3 Flash Start Sampler Buttons per side (6 second sample per button with or without a CD in drive)
  • Flash Cue
  • Anti-shock memory
  • Instant start
  • Seamless loop
  • Fader Q Start
  • Reverse play
  • Black brushed aluminum face plate
  • Volume control between music and sampler
  • Mixer between music and sampler, can adjust pitches separately
  • FX MIX on the fly
  • Auto cue function (-48dB)
  • 3 sampler (cues) can be memorized
  • Selectable elapsed, remain and total remain time display
  • Single/continuous play
  • Flip Flop (Relay playback between both channels)
  • Dimensions (WxHxD): MAIN UNIT: 19&" x 3.5&" x 10&" / 482 x 88.8x 251mm (2 rack spaces) CONTROL UNIT: 19&" x 7&" x 2&" / 482 x 177 x 52mm (4 rack spaces)
  • Weight (total): 23 lbs. / 8.6 kgs.
  • Power: AC 115/60Hz or 50Hz/230V switchable
  • Power Consumption: 25W
  • Frequency Response:20-20KHz +/-1dB
  • T.H.D.: 0.03%
  • S/N ratio: 86 dB
  • Over Sampling Rate: 8 times
  • D/A Conversion: 16 bit
  • Sampling Rate:44.1k

Downloads

  • DCD-PRO1000 User Manual (Español)

    • DCD-PRO1000 Parts & Service

    Our DCD-PRO1000 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your DCD-PRO1000. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

    DCD-PRO1000 Parts & Service
