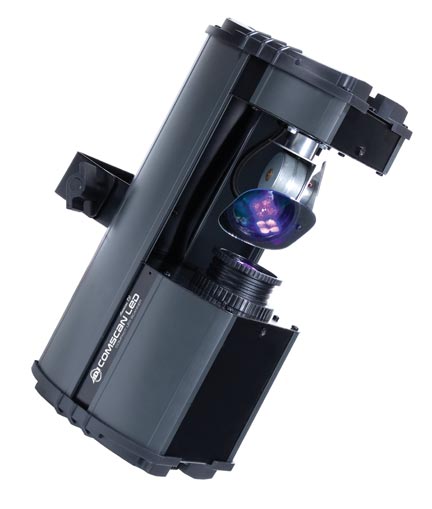

Comscan LED

SKU: COM513
Add exciting pattern effects with the 8 color/gobo, portable Comscan LED from ADJ! With the built-in programs and custom settings, this unit can create virtually unlimited combinations of shapes and patterns perfect for any event. Also has long lifetime LEDs and runs cool with no duty cycles.
Advantage Points: 250

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Add exciting pattern and shape effects to your light show with the Comscan LED from American DJ! Built to be compact and portable, this high-performance mobile DMX scanner affordable and lightweight, making it great for adding professional quality effects to your performance without breaking the bank or your back. This LED scanner also boasts amazing longevity with LED lifetimes rated at 30,000 hours!

With 8 gobos/colors and exciting built-in lighting programs, ADJ's Comscan LED can create bubbles, spirals, webs, and almost anything you can imagine in numerous different color combinations. While many other lighting effects are limited to spot and strobes with a limited beam, this unit brings variety to your display through the limitless number of patterns and shapes you can create. Whether you're trying to set the mood for a wedding reception or add strobing intensity to a rock & roll show, the Comscan LED scanner is has the versatility to be a central part of any lighting array.

Built to the same exacting specifications as every American DJ product, you can count on the Comscan LED to product top-quality professional effects night after night, year after year thanks to the long lifetime LEDs and the cool-running (no duty cycle) design.

Specifications

Specifications

  •  Compact & portable high performance mobile DMX scanner with an advanced high performance LED source
  •  8 gobos/colors + spot
  •  Gobos & Color are on the same wheel
  •  DMX-512 protocol (5 DMX Channels)

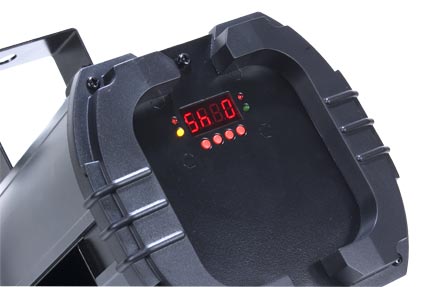

  •  4-Button menu system LED Display making it easy to navigate
  •  3 Operational modes: DMX controller, Master/Slave & Sound Active
  •  Exciting built-in lighting programs
  •  Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 & 3 sync opposite Scanner 2 & 4
  •  Manual focusing lens
  •  Gobo Shake effect (via DMX Controller ONLY)
  •  Dimming: 0-100% (via DMX Controller ONLY)
  •  Strobe effect
  •  Beam angle: 13-degrees
  •  X/Y mirror movement
  •  Pan: 166-degree (DMX); 104-degree (Sound Active)
  •  Tilt: 54-degree (DMX); 40-degree (Sound Active)
  •  1.8 degree Stepper motors with micro stepping
  •  Hanging Bracket + safety hook included
  •  Power consumption: 30W max
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Run all night - No duty cycle - Unit stay cool all night
  •  No cooling fan required - Very little maintenance needed
  •  Extreme long lifetime of the LEDs (30,000 hr. rating)

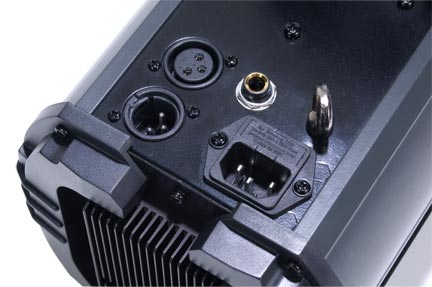

  •  Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
  •  Dimensions (LxWxH): 13.5"x6.25"x8" / 344x160x200mm
  •  Weight: 8 lbs. / 3.6kg.
  •  ETL Approved (see user manual for more info)

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Comscan LED User Manual Download
