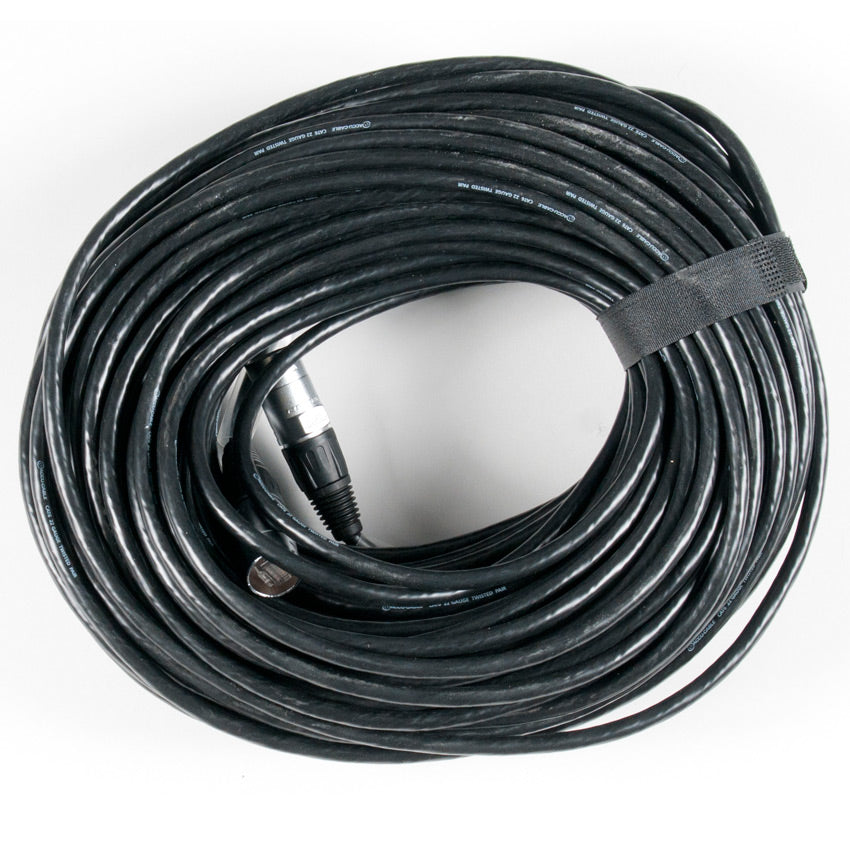

CAT6PRO250
UPC#: 837874016239
Advantage Points: 116
Redemption Points: 2320
SKU
CAT250
- Inner conductor: Bare COPPER 19 x 0.12
- Inner conductor section: 0.22mm²
- Isolation: HDPE Ø 0.95mm
- T-568B, Straight Cable Wiring : Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)
- Number of conductors: 8
- Conductor Twisting: Yes
- Outer jacket: Flexible PVC
- Outer jacket color: Black
- Outer jacket dimensions: Ø 6.5mm
- American Wire Gauge: 24 AWG
Videos
There are currently no videos available for this product.
Downloads
There are currently no downloads available for this product.:
The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6, T-568B standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
