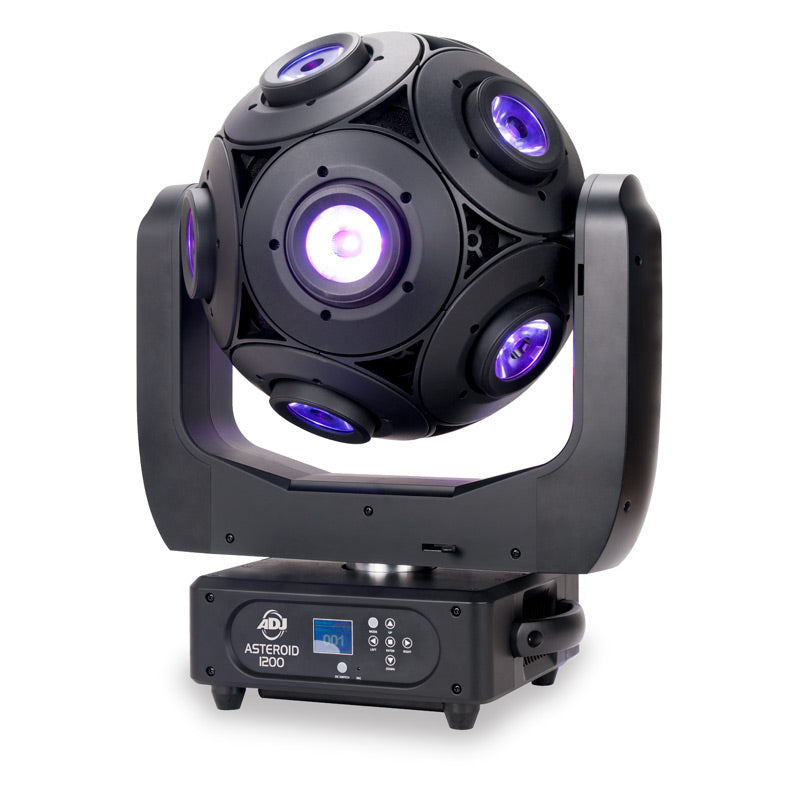

Asteroid 1200

180W RGBW (4-IN-1) LED spherical Centerpiece effect with 360-degree continuous rotation of head and yoke. Create out of this world mesmerizing visual effects with the ADJ Asteroid 1200. 180W RGBW (4-IN-1) LED spherical Centerpiece effect with 360-degree continuous rotation of head and yoke. Create out of this world mesmerizing visual effects with the ADJ Asteroid 1200. 180W RGBW (4-IN-1) LED spherical Centerpiece effect with 360-degree continuous rotation of head and yoke. Create out of this world mesmerizing visual effects with the ADJ Asteroid 1200. 180W RGBW (4-IN-1) LED spherical Centerpiece effect with 360-degree continuous rotation of head and yoke. Create out of this world mesmerizing visual effects with the ADJ Asteroid 1200.
SKU: AST200 | UPC: 819730017901
180W RGBW (4-IN-1) LED spherical Centerpiece effect with 360-degree continuous rotation of head and yoke. Create out of this world mesmerizing visual effects with the ADJ Asteroid 1200.
Advantage Points: 1600

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

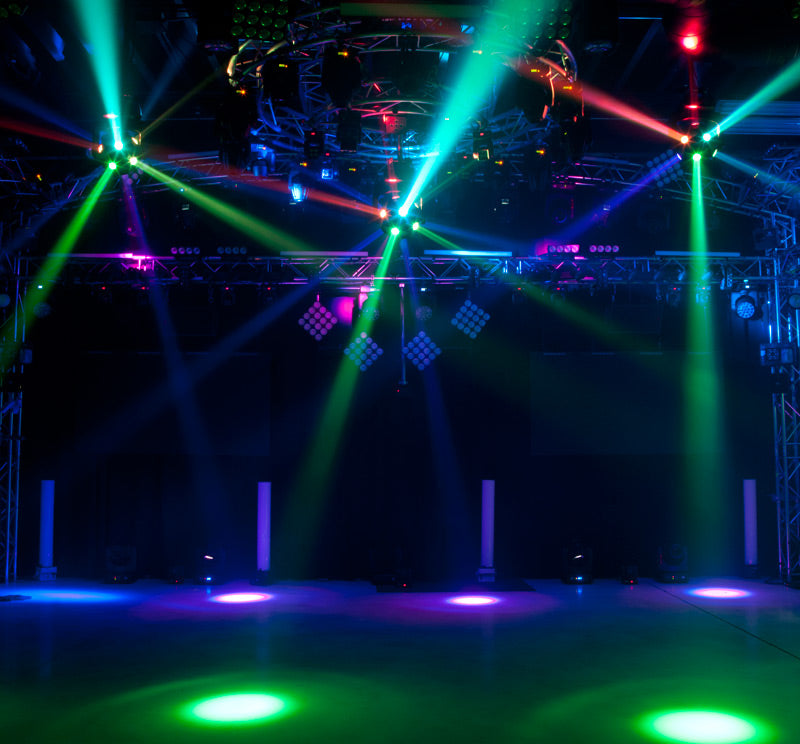

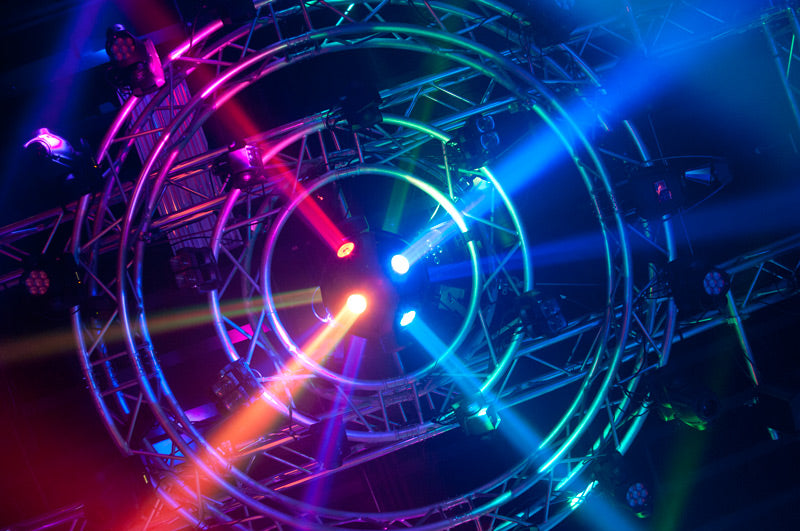

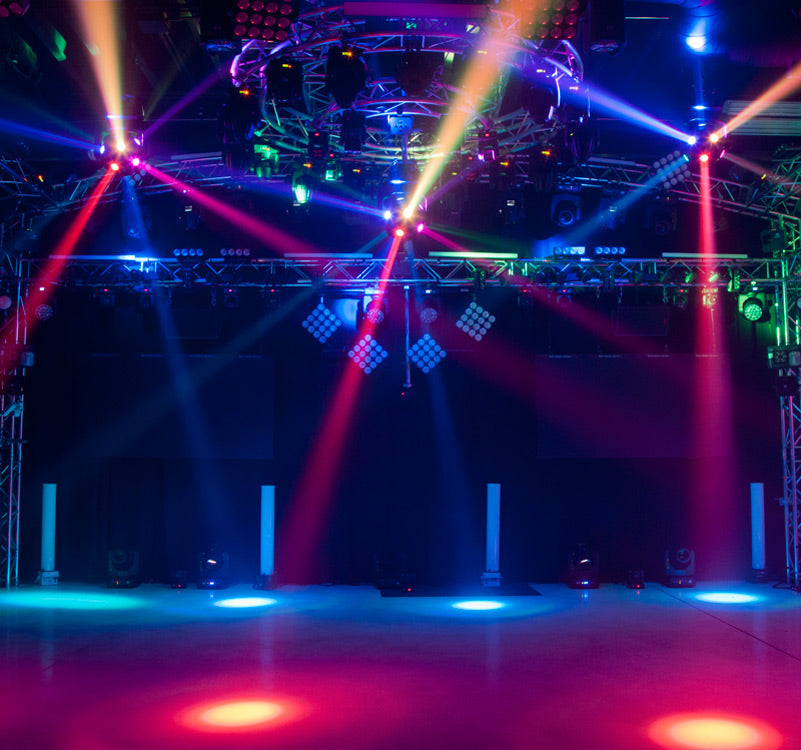

Add a new dimension of visuals to your lightshow with the ADJ Asteroid 1200 centerpiece effect. This epic space age effect has infinite pan and tilt spraying beams of light all around a room and over a dance floor. With 12x 15W Quad LEDs (RGBW), full DMX programing control (18, 20 or 69 channels), and pixel mapping capabilities, lighting designers can create out of this world mesmerizing effects. Additional features and specifications include: PowerCon In/Out to daisy chain power, 3-pin and 5-pin DMX, 4-degree beam angle, a LUX of 9056 @ 2M, and a LED life of 50,000 hours.

Learn more about the Asteroid 1200 in this product spotlight: http://tinyurl.com/zrn8l2z





Specifications

Specifications

Features:

• Infinite Pan and Tilt rotation in both directions

• Advance lens optics eliminates RGBW shadows

• 4-degree beam angle produces sharp beams of light

• Pixel Mappable capability via DMX, Artnet or KlingNet

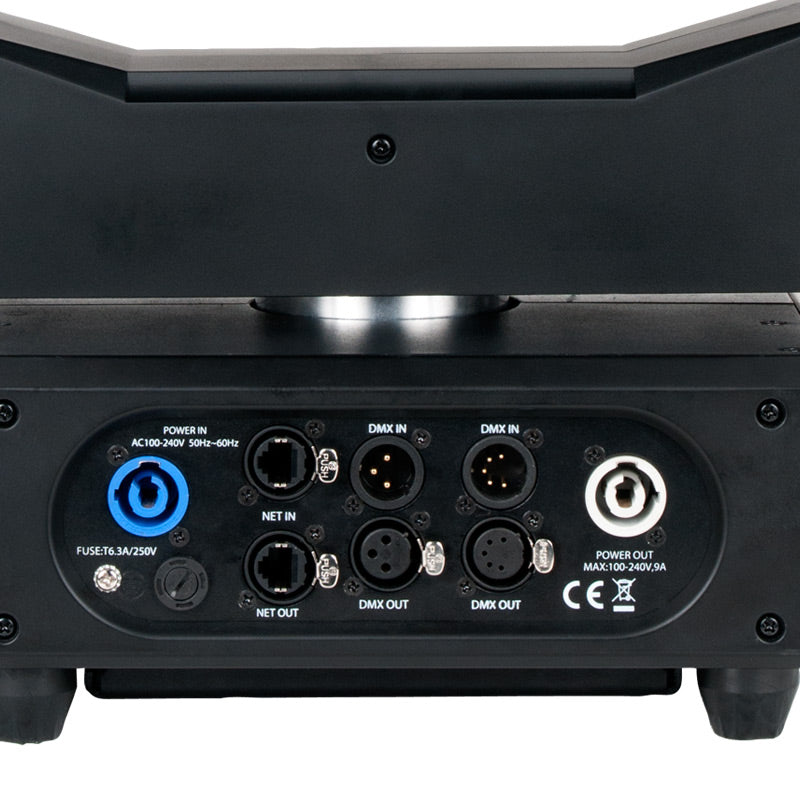

• Powercon Connections In and Out



Specifications:

• Light source: 12 X 15W RGBW (Red, Green, Blue, White) 4-IN-1 LED Engine

• Lamp Life: 50,000 Hrs

• Lux: 39,749 max; 9056 Full on @ 2M

• Refresh Rate: 1.2KHz

• Beam Angle: 4-degree Fixed, 11-degree (Field Angle)

• Operational Modes: Artnet/KlingNet, DMX, Sound Active, Stand Alone, Master/Slave

• DMX Modes: 18, 20 and 69 Channels

• DMX Connection: 3-pin and 5-pin

• Strobe: Electronic 1Hz-20KHz

• Dimming: Electronic 0-100%

• Pan: Infinite

• Tilt: Infinite

• Power Connections: Powercon In / Powercon Out

• Power Draw: 226W Max

• Voltage Input: 100-240V, 50/60Hz

• Weight: 49 Lbs/ 22Kg

• Dimensions: 15.75 x 17.75 x 23.5”/ 400 x 450 x 600mm

• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Asteroid 1200 Photometrics Download
Asteroid 1200 CAD Drawing Download
Asteroid 1200 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

can i please get a copy of the manual for the ASTEROID 1200

Hello Isaac,

Here is the link to the manual. file:///C:/Users/pnavarette/Downloads/asteroid_1200%20(1).pdf

Let me know if you have any further questions.

Thanks
