5PX HEX Pearl

UPC#: 818651025408
Advantage Points: 220
Redemption Points: 4400
SKU
HEX560

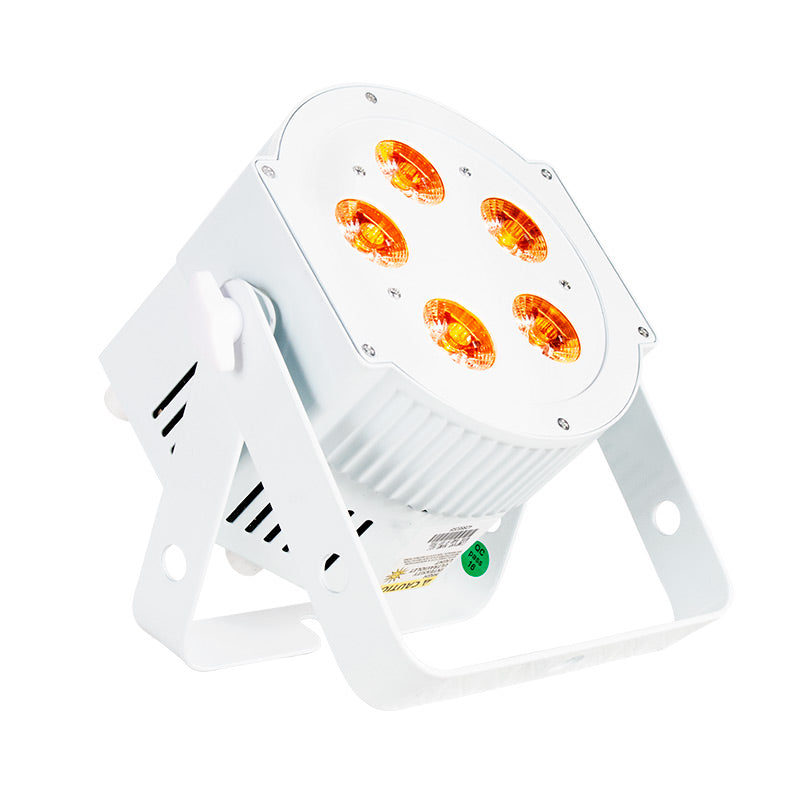

The ADJ 5PX Hex Pearl is a versatile LED Par fixture with 5 x 12-Watt, 6-IN-1 HEX LEDs and a metal white exterior housing. Now with locking power In/Out connections, plus 3-pin and 5-pin DMX In/Out. The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).

Where to Buy

Enter your zip code below to find this product at a retailer near you!

FEATURES:

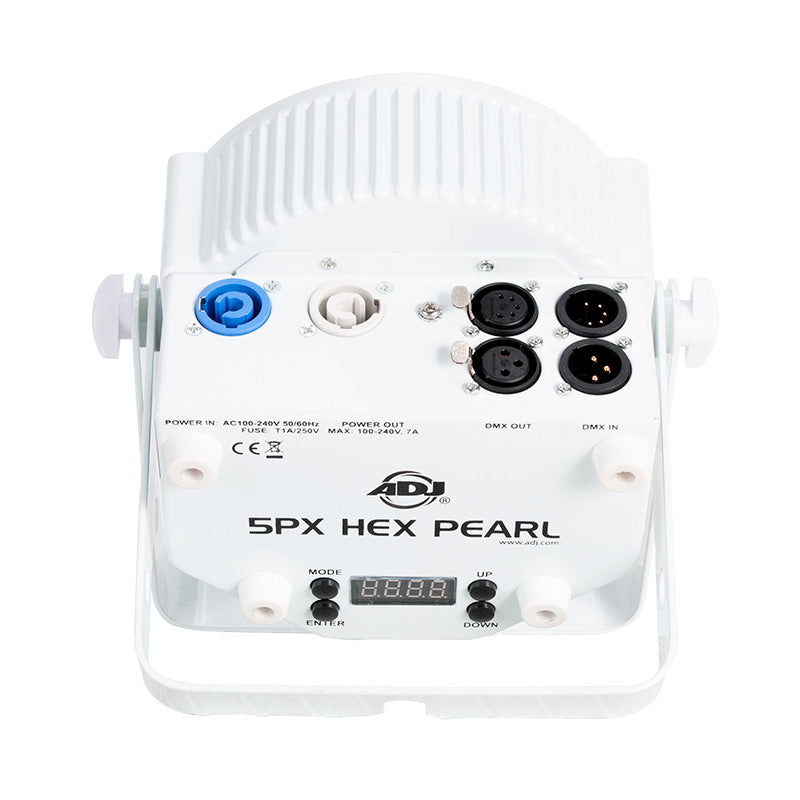

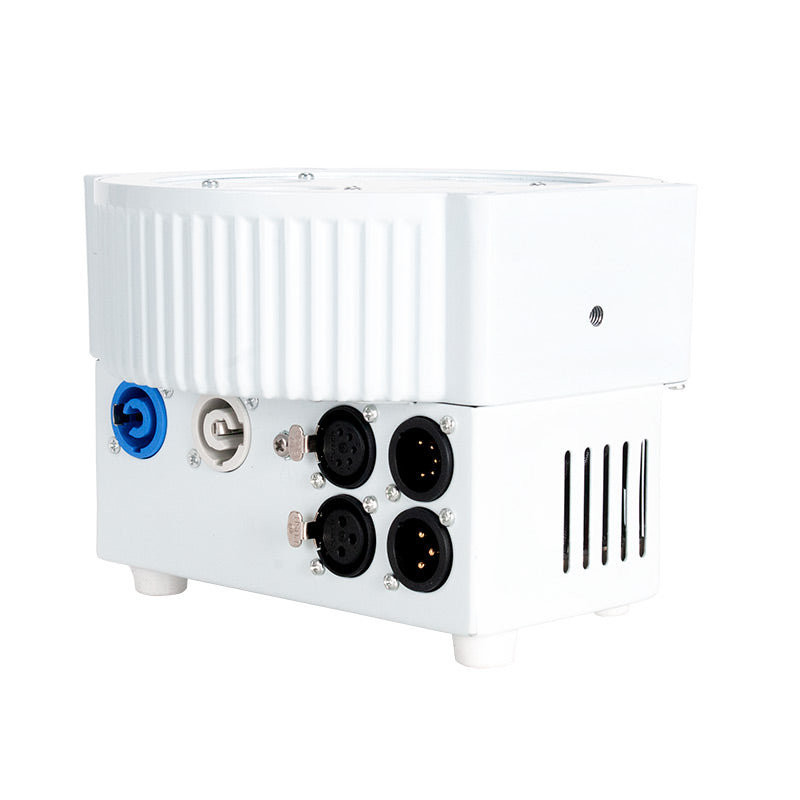

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• Metal white exterior housing



OPTICAL:
• Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 25-degree



CONTROL:

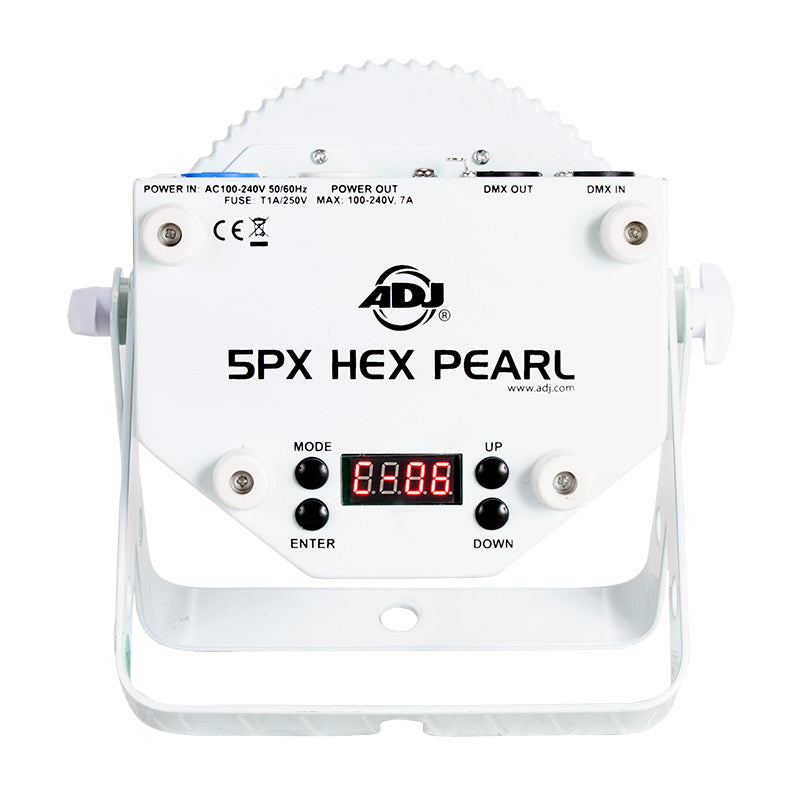

• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, & 12 channel
• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%



CONNECTIONS:
• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from locking power In/Out connections
• With Wired Digital Communication Network



ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain up to 11 fixtures


DIMENSIONS:
• Dimensions (LxWxH): 4.5” x 8.25” x 8.75”/ 114 x 208 x 222mm
• Weight: 5.8 lbs. / 2.6 kgs



WHAT’S IN THE BOX:
• Locking power to Edison cable
• Scissor yoke



APPROVALS:
• cETLus Approved (Control #4010765)
• CE Approved

Videos

Downloads

The following downloads are available for this product:

Title Description
5PX Hex Pearl Cut Sheet Cut Sheet Download
ADJ 5PX Hex Pearl User Manual User Manual Download
5PX HEX Photometric Test Reports Photometric Test Reports File (5MB) Download
5PX HEX Photometric IES Files Photometric IES Files Download

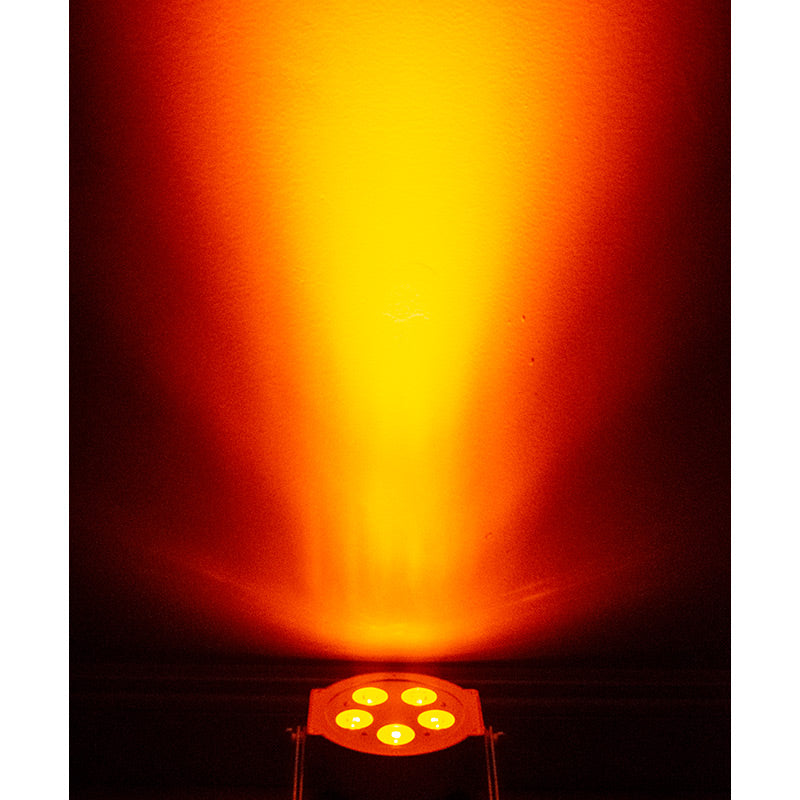

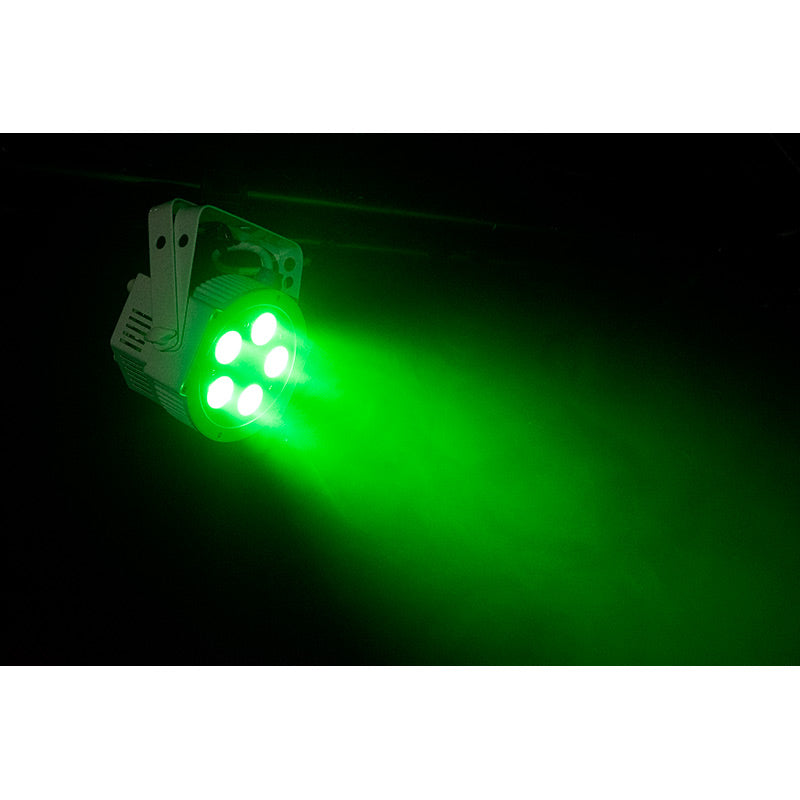

Create brilliant wash lighting looks with the ADJ Lighting 5PX HEX Pearl LED Par Can! This versatile fixture combines cutting-edge technology with exceptional performance to illuminate your stage or architectural space like never before.


Featuring 5 x 10-Watt, 6-IN-1 HEX LEDs in a white housing, the 5PX HEX Pearl unleashes a powerful beam of light with a 25-degree angle, allowing you to create expansive washes and achieve smooth color blending. With 63 built-in color macros utilizing red, green, blue, amber, white, and UV LEDs, your creative possibilities are limitless.


Designed for professionals, this LED Par offers a range of advanced features. Choose from 4 DMX modes and 5 operational modes, and enjoy flicker-free operation with 5 selectable dimming curves. The user-friendly 4-button DMX menu with a digital display ensures effortless control.


The 5PX HEX Pearl is not only versatile but also convenient. Its intelligently designed power and DMX Ins/Outs allow for flat placement on the ground or inside truss systems. The scissor yoke and rubber feet provide flexible mounting options. Plus, the all-metal black exterior ensures durability and style.


With a lifespan of approximately 50,000 hours, the 5PX HEX Pearl is built to last. Explore the captivating 7 built-in programs, or effortlessly operate the fixture using the optional Dotz Par RF wireless remote control. Alternatively, unleash your creativity with a DMX controller or utilize the unit's built-in programs.


This lightweight powerhouse weighs only 5.8 lbs. (2.6 kgs) and is easily transportable. The multi-voltage operation and daisy-chain capability make setup a breeze, while the cETLus and CE approvals guarantee its reliability and safety.


Unleash a mesmerizing display of colors, effects, and versatility with the ADJ Lighting 5PX HEX Pearl LED Par Can. Illuminate your world and captivate your audience with this extraordinary lighting solutio
