12PX HEX PEARL
FEATURES:

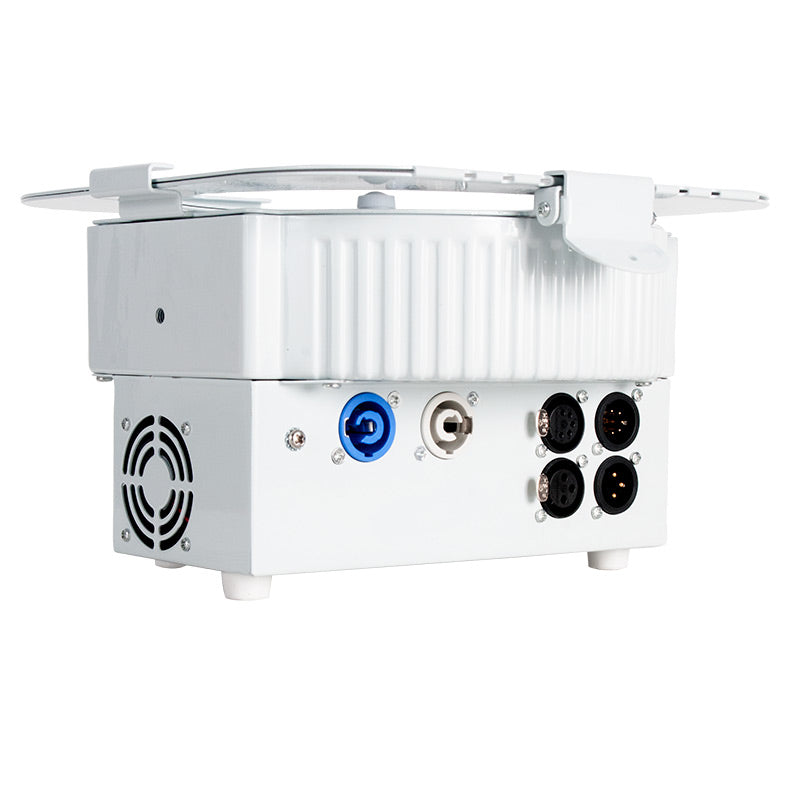

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• All metal white exterior housing
OPTICAL:

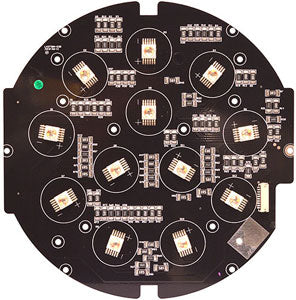

• Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 30-degree
CONTROL:

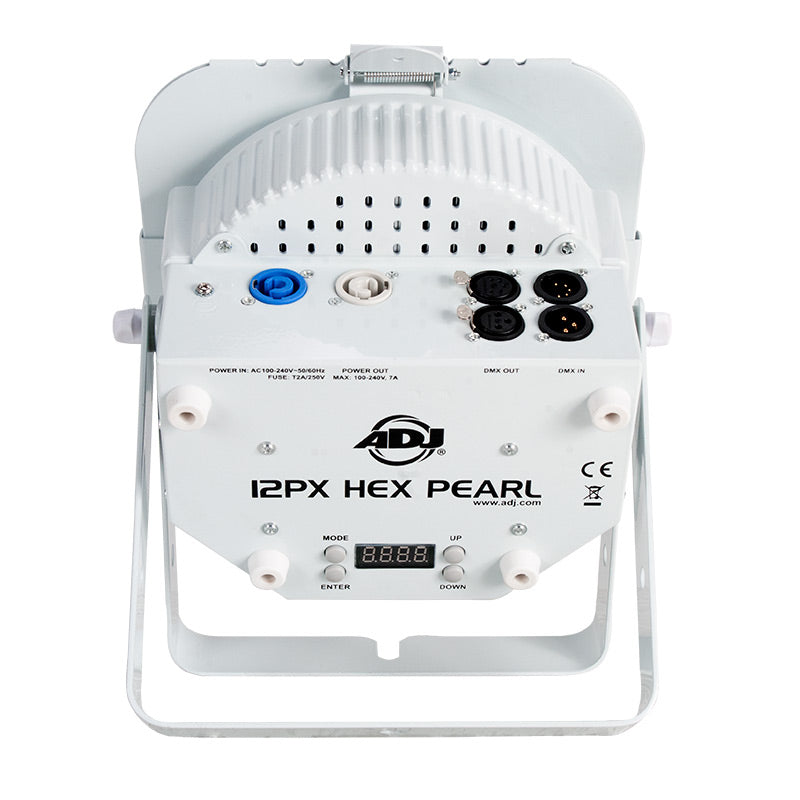

• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, & 12 channel
• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
CONNECTIONS:
• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from locking power In/Out connections
• With Wired Digital Communication Network
ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 5.34” x 9.8” x 11.7”/ 136 x 249 x 297.5mm
• Weight: 8.7 lbs. / 4 kgs
WHAT’S IN THE BOX:
• Locking Power to Edison Cable
• Scissor yoke
• Gel frame to use with diffusion filters (Diffusion filters sold separately)
APPROVALS:
• cETLus Approved (Control #4010765)
• CE Approved
Videos
Downloads
The following downloads are available for this product:
Title | Description | |
---|---|---|
12PX HEX Pearl Cut Sheet | Cut Sheet | Download |
ADJ 12PX Hex Pearl User Manual | User Manual | Download |
12PX Hex Pearl Full On Stable Photometric Test Report | Photometric Test Report | Download |
12PX Hex Pearl Full On No UV Stable Photometric Test Report | Photometric Test Report | Download |
12PX Hex Pearl Full On Photometric Test Report | Photometric Test Report | Download |
12PX Hex Pearl DMX Traits | DMX Traits | Download |
12PX Hex Pearl Photometric Test Report - Full On No UV | Photometric Test Report | Download |
Available now from ADJ USA

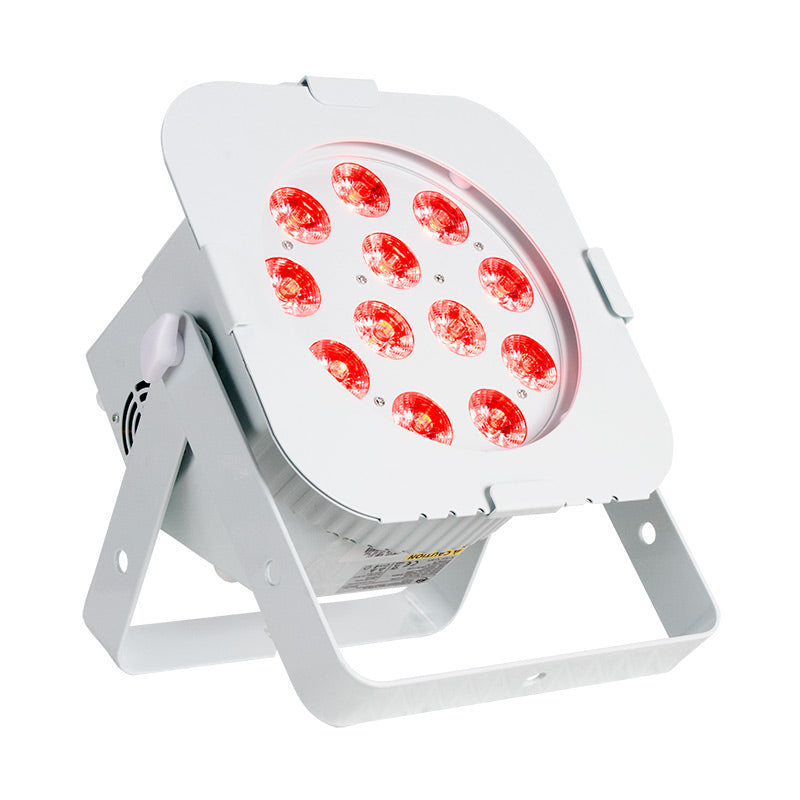

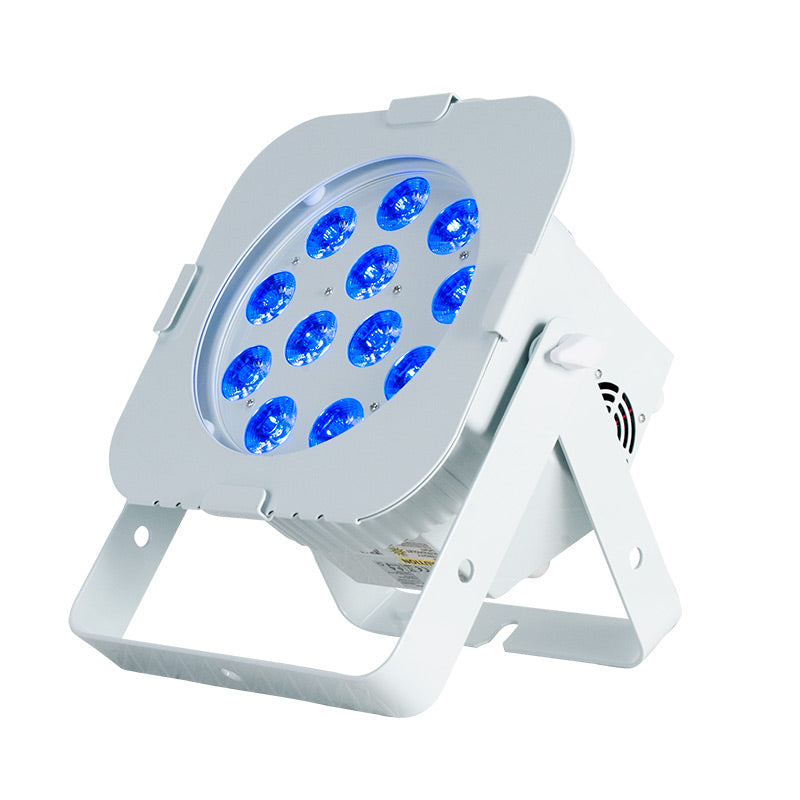

The ADJ 12PX HEX Pearl is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs and is made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue, or used as a stage wash.
12PX HEX Pearl professional features include: locking power In/Out connections to daisy chain power, 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors.
The 12PX HEX Pearl is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs.
Learn more about the 12PX HEX Pearl in this product spotlight article: CLICK HERE
Check out the press release CLICK HERE
Also available: 12PX HEX in black exterior finish.
