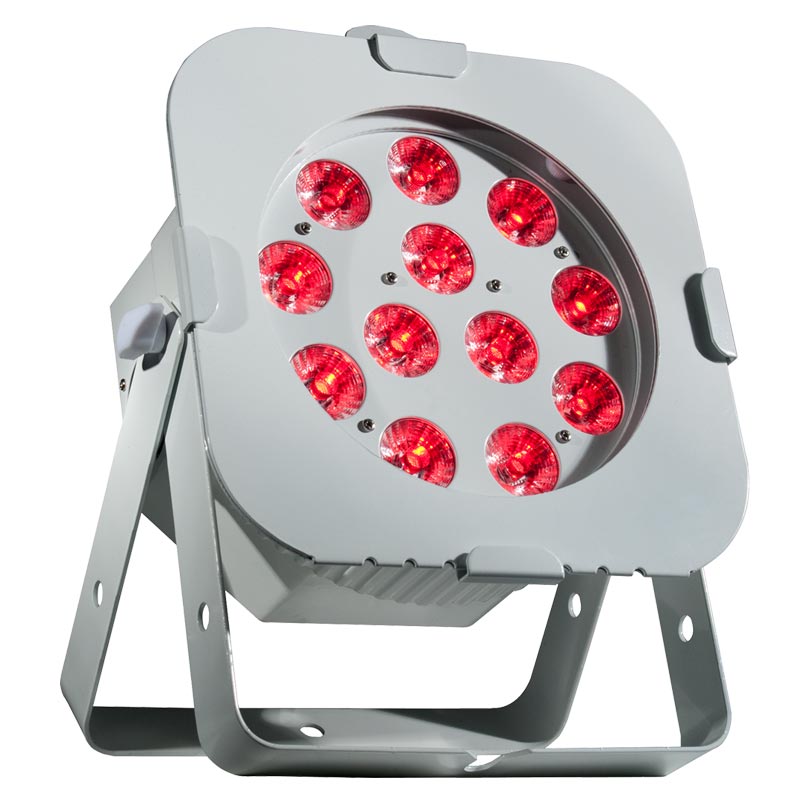

12P HEX Pearl

The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs
SKU: HEX024 | UPC: 819730015969
The ADJ 12P Hex Pearl is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs in a white metal casing.
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

• Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels
• White metal casing

• Smooth RGBAW + UV color mixing

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

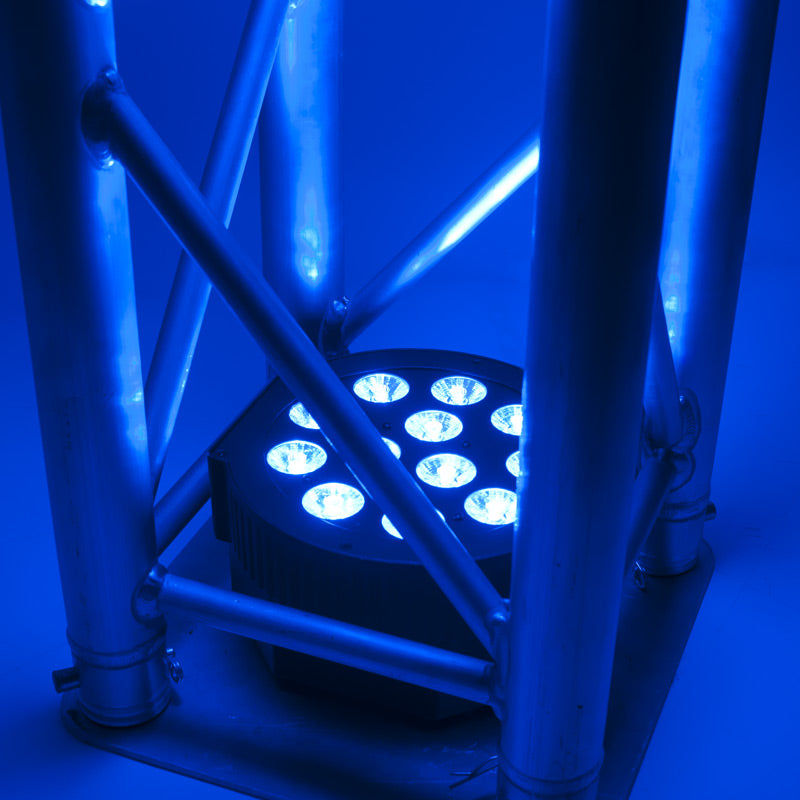

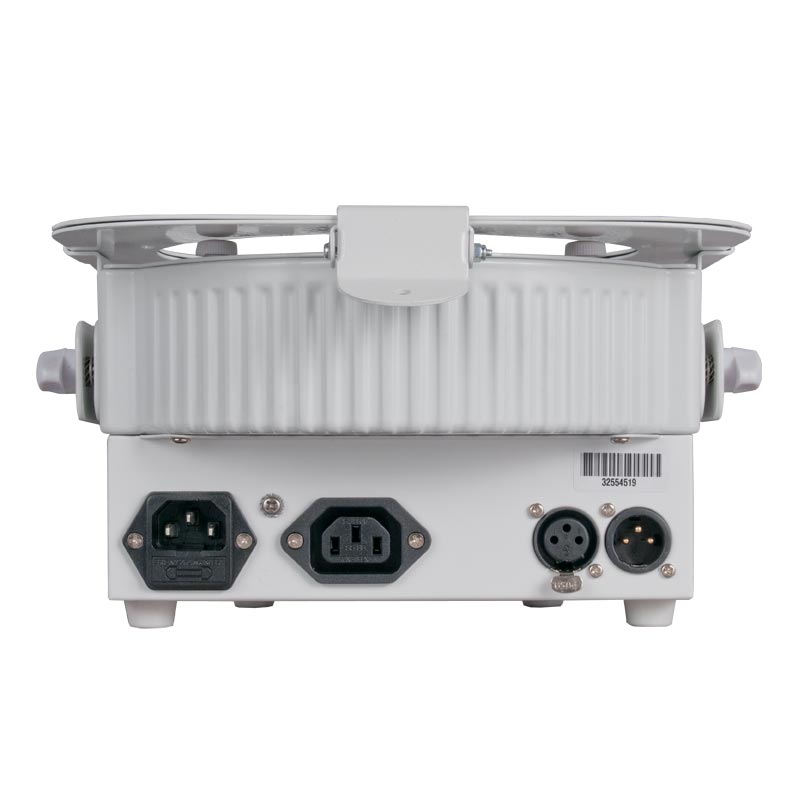

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• 4 DMX Modes: 6, 7, 8, & 12 channel

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

• 7 Built-In Programs

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Beam angle: 30-degree
• Includes metal gel frame

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• Dual yoke allows fixture to be hung or set on the ground

• Data linkable via 3-pin XLR cables

• Power linkable via IEC power cables. (6x 12P Hex’s Max @ 110V, 13x 12P Hex’s Max @ 240V

• Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
• Light Output: 2270 LUX @2M; 733 LUX @4M (30-degree beam)
• UV Wavelength: 395nm
• Refresh Rate: 3.6KHz

• Power Draw: 150W total (All LED's @ Full On)

• Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)

• Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm

• Weight: 9 lbs. / 3.9 kgs
• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
ADJ 12P Hex Photometric IES Files Download
ADJ 12P Hex Photometric Test Reports Download
ADJ 12P Hex/12P Hex Pearl User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for 12P HEX Pearl
