12P HEX IP

UPC#: 818651025125
Advantage Points: 500
Redemption Points: 10000
SKU
HEX206

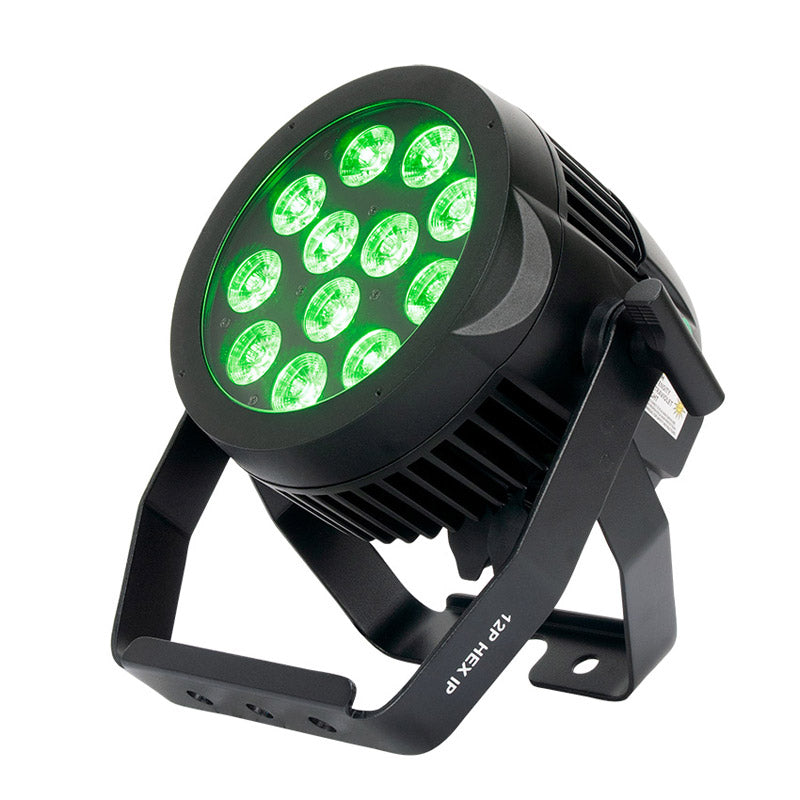

The ADJ 12P HEX IP is a versatile, heavy duty Par with HEX LEDs, a 25-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Optical:

• Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED) - Rated at approximately 50,000 hrs.)

• Beam angle: 25-degree


Features:

• 4 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode and DMX Controlled

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Supports RDM (Remote Devise Management)

• Scissor Yoke & safety eye

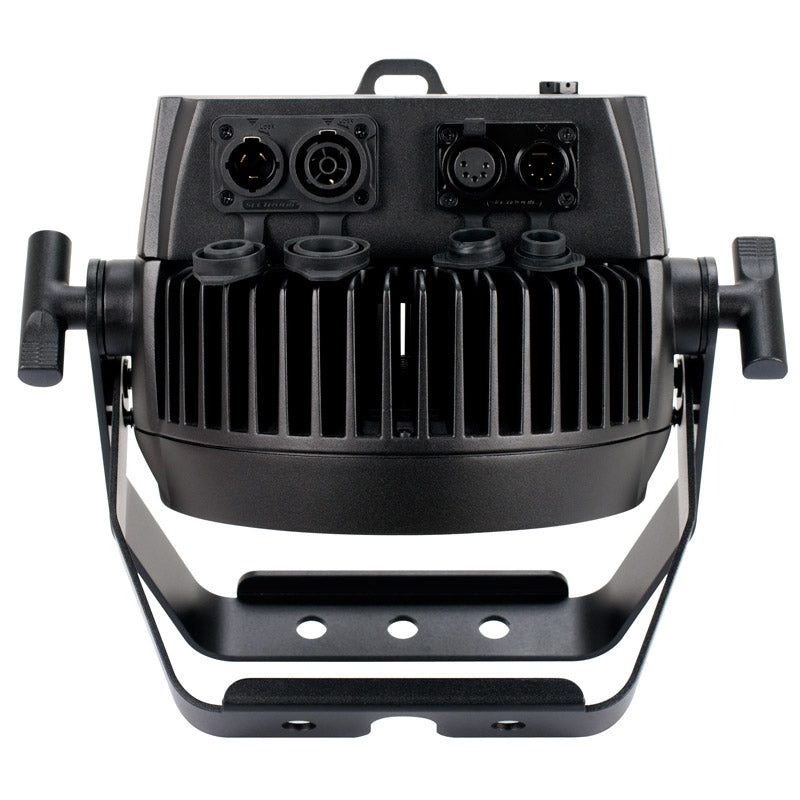

Connections:

• IP65 PowerLock AC In/Out connections

• IP65 Data linkable via 5-pin XLR cables

• Daisy chain: 12 units (120V); 24 units (220V)


Control:

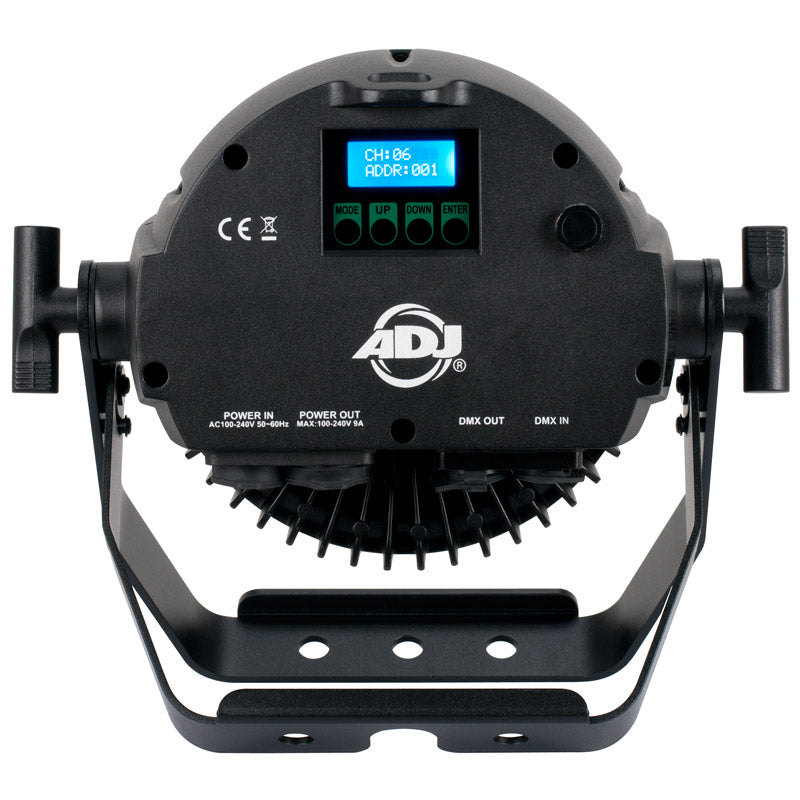

• 4-button, DMX digital display on rear panel

• 4 DMX Modes: 6, 7, 8, & 13-channel


Dimensions / Weight:

• Dimensions (LxWxH): 11.75” x 7.85” x 10.5” / 298x199.5x264mm

• Weight: 10.5 lbs. / 4.7 kg.


Certifications:

• IP rating: IP65 Outdoor Rated

• cETLus (Control # 4010765)


Included in Box:

• IP65 PowerLocking cable


Specifications subject to change without notice.

Videos

Downloads

The following downloads are available for this product:

Title Description
HEX IP - Series Brochure Brochure (Rev. Oct 2021) Download
12P HEX IP - Photometric IES Files Photometric IES Files Download
12P HEX IP - Photometric Test Reports Photometric Test Reports Download
12P Hex IP - Vectorworks Symbol 12P Hex IP - Vectorworks Symbol Download
12P Hex IP - User Manual User Manual Download

Available now from ADJ USA

The ADJ 12P Hex IP is a versatile IP65 outdoor rated Par with 12 x 12-Watt  (6-IN-1 HEX) LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow and dust.



12P HEX IP professional features include: 4 DMX modes, 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with Locking power connector in/out and IP rated 5-pin DMX rubber covers and connectors. In addition to the IP rated power linking and DMX cables be used, but standard 5-pin DMX and Locking IP65 cables may also be used for indoor applications (stand cables will not create an IP65 seal).

Learn more about the HEX IP series from this product spotlight article CLICK HERE.

Check out the HEX IP Series press release CLICK HERE.
